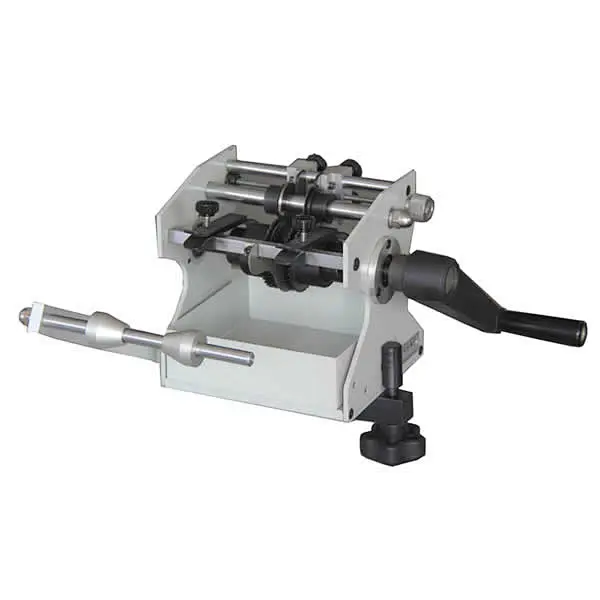

LF-601 Manual Taped Axial Lead Former Features
|
● Taped axial lead former for taped components process up to 25,000 / hour without any stress on your parts. |
|
● 2 Models are available for standard, and vertical lead forming. |
|
● LF-601 machine is easy to setup with simple adjustments for component cut length. |
|
● Independent rotary disc cutters with longer cutting life. |
|
● Easy maintenance and simple operation is your best choice. |
|
LF-601 - Specifications |
||
|
Model |
LF-601U |
LF-601F |
|
A |
6mm - 40mm |
4mm - 18mm |
|
B |
3.6mm - 10mm |
adjustable |
|
C |
1.2mm Min |
4mm Min |
|
D |
1.5-8mm |
1.5-8mm |
|
H |
25mm Max |
|
|
W (diam) |
¢0.35 - ¢0.8mm |
¢0.35 - ¢0.8mm |
|
P |
2.5-13.5mm |
|
|
R (radius) |
1mm |
|
|
Capacity |
25,000/hr |
|
|
Dimensions |
300mm (L) x 200mm (W) x 210mm (H) |
|
|
Net Weight |
8kgs |
|
