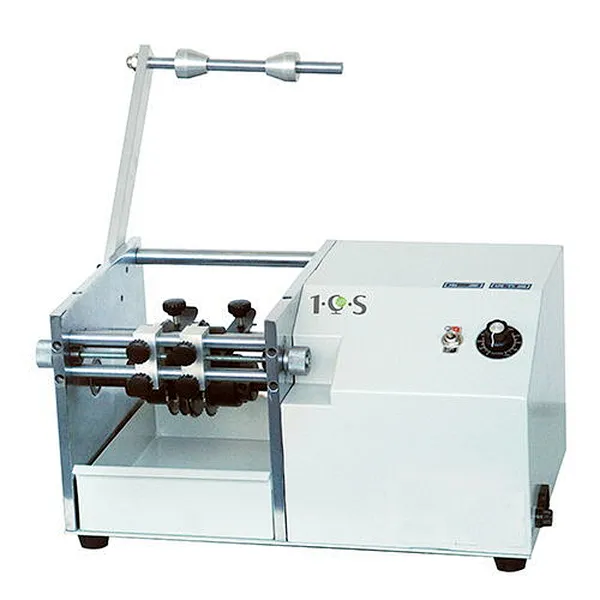

LF-602 Motorized Axial Lead Former
LF-602 Motorized Axial Lead Former

LF-602 Motorized Axial Lead Former

The axial lead former will form parts up to 35,000/Hr. It is a low maintenance machine and due to it's design places minimal mechanical stress on the component body during the lead forming,The machine is very flexible which allows the tape reel holder to be changed  for different pitch and cut length.

LF-602 Motorized Axial Lead Former Features

LF-602 series lead former/cutters offers economical solutions for companies whose assemblies include axial components.

Low maintenance taped axial lead former process up to 35,000 with placing any stress on your parts.

Independent rotary disc cutters for longer cutting life.

Heavy duty and Powerful construction- Sustainable lifespan.

Ready-to-use setup - customers can use the machine right after receipt of it

Never damage component leads or components body.

LF-602 Diagram.jpg

LF-602 - Specifications

Model

LF-602U

LF-602F

A

6mm - 40mm

4mm - 18mm

B

3.6mm - 10mm

adjustable

C

1.2mm Min

4mm Min

D

1.5-8mm

1.5-8mm

H

25mm Max

W (diam)

¢0.35 - ¢0.8mm

¢0.35 - ¢0.8mm

P

2.5-13.5mm

R (radius)

1mm

Capacity

Taped 35,000/hr

Power Supply

220V/50HZ , 1PH

Power

40W

Dimensions

430mm (L) x 250mm (W) x 250mm (H)(not include bracket)

Weight

24kgs
