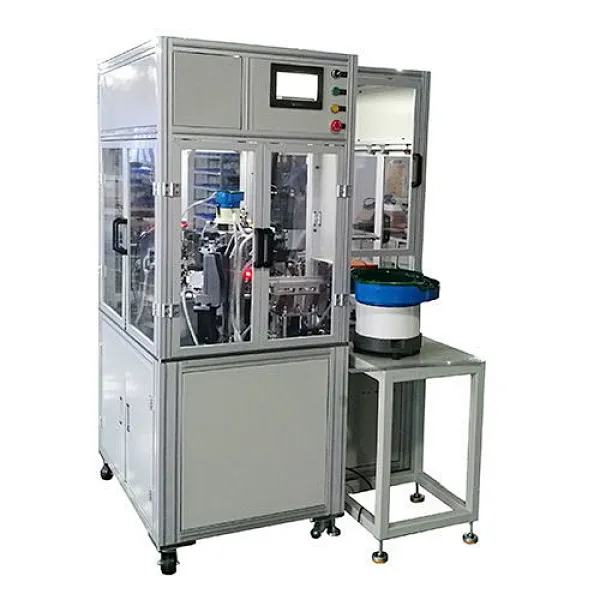

Bead And Tube Insertion Machine LF-2000A

Bead And Tube Insertion Machine LF-2000A

Bead And Tube Insertion Machine LF-2000A  Details:

Vibration feeder Linear feeder and picking work station
Vibration feeder Linear feeder and picking work station
Lead forming die Bead inserting work station
Lead forming die Bead inserting work station
Tube inserting and pressing work station Glue dispensing work station
Tube inserting and pressing work station Glue dispensing work station
Lead cutting work station Component unloading work station
Lead cutting work station Component unloading work station
Full English interface , easy to operate .realize full automatic  production just  by press start up button.
Full English interface , easy to operate .realize full automatic  production just  by press start up button.

Bead And Tube Insertion Machine LF-2000A  Specification

  Model

  LF-2000A

  Suitable components

  Triode,etc

  Component feeding mode

  Tube feeder or vibration bowl feeder (optional )

  Suitable tube type

  Teflon tube

  Teflon tube size required

  Min 0.5mm+ lead diameter

  Forming die

  Customized according to requirement( lead pitch is fixed for different dies)

  Component exhaust detect

   Yes

  Tube exhaust detect

  Yes

   Capacity

  Approx 1000 pcs / Hour

  Power

  1000W

  Air requirement

  0.4-0.6Mpa

  Power

  220V,50HZ

  Machine Size

  Approx L1300*W1210*H1830mm

  Weight

  Approx 500KG
