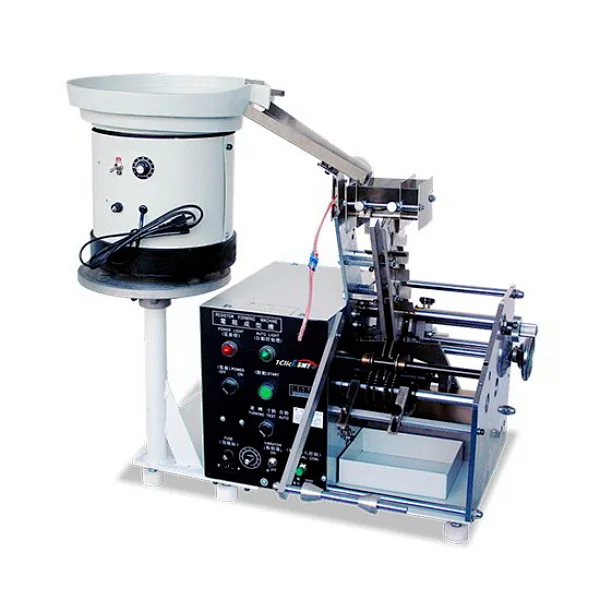

LF-608 is available for tape packed and Loose in bulk axial components lead forming.
LF-608 Axial Lead Former Features
|
● LF-608 is available for tape packed and Loose in bulk axial components lead forming. |
|
● Powerful, heavy-duty Auto Axial Lead former/ cutter, with customized die set available for various forming specification. |
|
● Tailored / Customized die is available for any lead forming specification. |
|
● Never damage component leads or components body. |
|
● LF-608, Lead forming machine is suitable for mass production line. |
|
LF-608 - Specifications |
|
|
Model |
LF-608 |
|
A body length |
3.8-20mm |
|
B body diameter |
2.3-8.0mm |
|
C shoulder |
Min 2 mm |
|
D |
Fixed 8mm or customized size |
|
E lead length |
Adjustable，min 2mm |
|
S supporting point |
2-3mm |
|
L pitch |
A+2C |
|
W wire diameter |
¢0.4-1.3mm |
|
Capacity |
Approximate 6,600/Hr,speed is adjustable |
|
Power Supply |
220V/50HZ ,1PH |
|
Net weight |
115 kgs |
|
Dimension |
610L*475W*380H mm(not including vibrator and feeder) |
