The Insertion conveyor adopt quality motor with speed controller ,guide rail with pin chain and driving mechanism, runs smooth and low noise, equipped with component box, LED light , it is very suitable for through hole assembly line.

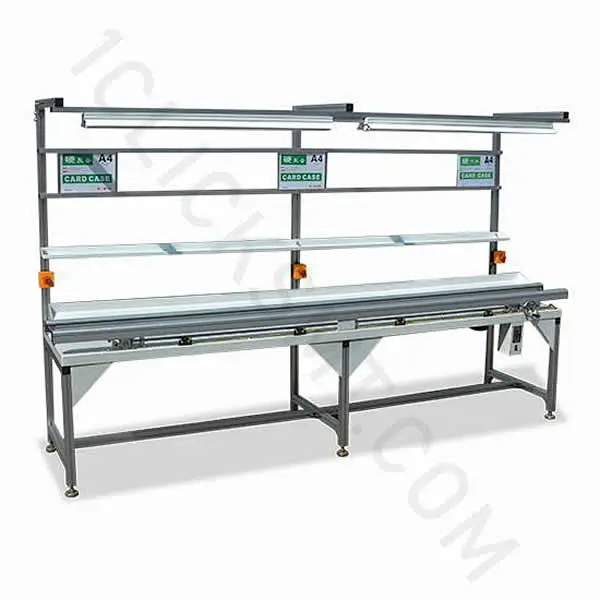

3M Double Side Insertion Conveyor MI-3000D Features:
1. 3000mm Aluminum conveying guide rail.
2. 40 x 40 mm aluminium profile ,thickness :1.5mm.
3. 35B pin chain(5mm).
4. Equipped with LED light.
5. Equipped with quality 60W conveying motor with speed controller, runs smooth and low noise.
6. Equipped with 2 component box.
7. Equipped with process card bracket.
8. ESD ground socket.
|
3M Double Side Insertion Conveyor MI-3000D Specification： |
|
|
Model |
MI-3000D |
|
Conveying width |
50-350mm |
|
Conveying height |
750±30mm |
|
Conveying direction |
Left to right |
|
Conveying speed |
0-5M/min |
|
Power supply |
1P 220V50/60HZ |
|
Overall dimension |
L=3000mm W=1290mm H=1865mm |
|
Power |
200W |
3M Double Side Insertion Conveyor MI-3000D Option:
1.Manual stop switch button
2.Stopping cylinder with foot pedal *3 set
