This unit is used when a passage way is required in a production line.

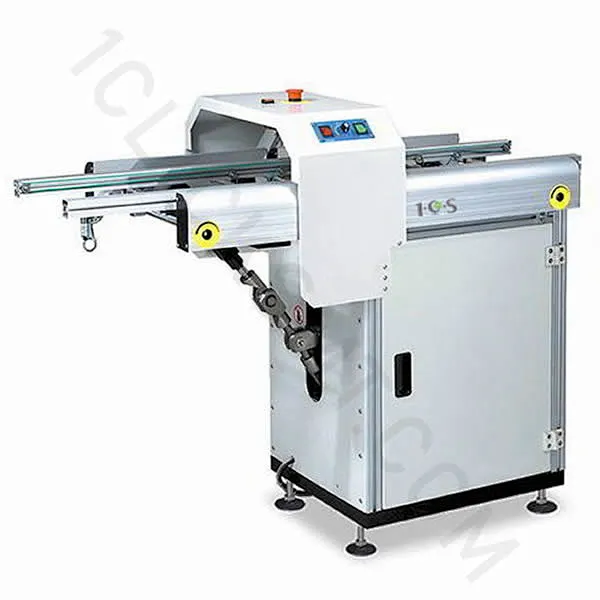

Lowering Gate Conveyor Series Features
● Pannasonic PLC Program control.
● Locking cylinder to avoid opening during PCB transfer.
● Ergonomic air pressure supported opening and closing.
● Automatically gate lifting down by push button.
● Smooth and parallel width adjustment.(lead screw)
● SMEMA compatible.
Lowering Gate Conveyor Series Specifications
|
● Transport height: |
910mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD flat belt |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
| ●Components clearance: | Bottom 30 mm or specify |
|
● Power supply： |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
100VA max. or specify |
|
● Machine cycle time: |
± 16 seconds |
|
● Passageway: |
600mm or specify |
|
● Air supply: |
4-6 bar |
|
● Air consumption: |
35 ltr /lift max. |
| ●Load bearing: | 1.5kg/PCB |
|
Model |
CYG330L |
CYG460XL |
|
Machine Dimension (L x W x H) |
1300 x 560 x 1250 |
1300 x 720 x 1250 |
|
Weight |
180kg |
230kg |
|
PCB length |
50mm - 445mm |
50mm – 530mm |
|
PCB width |
50mm - 330mm |
50mm – 460mm |
|
PCB Thinckness |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
|

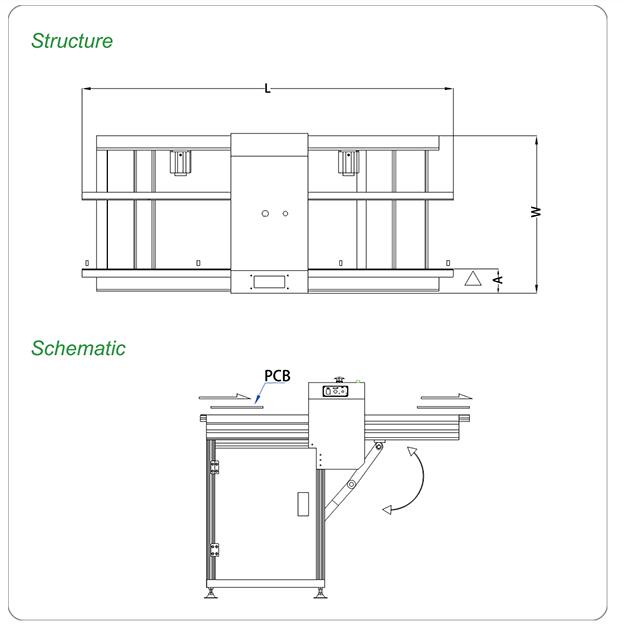

Fixed rail to front dimension(A) |
86mm |
86mm |
* Customized is available
Lowering Gate Conveyor Series Options
● Electrical width adjustment.
● Passageway length is customized
● Other options available on request.
