Coating Conveyor Series

Coating Conveyor Series

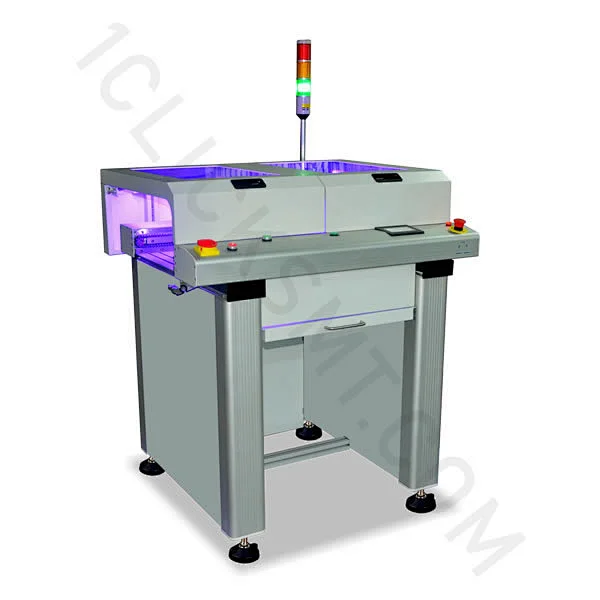

This unit is used as a visual inspection station for operators controlling the boards right after a conformal coating line.

Coating Conveyor Series Features:

● Modular design, PLC + Touch Screen control

● Stability enhanced by heavy design.

● Beautiful design with aluminum finishings.

● Smooth and parallel width adjustment (stainless steel screws).

● Covers which protect the boards against dust.

● 2-segments with independent flash-off time (programmable).

● Automatic/Manual modes with inspection button.

● Independent variable speed controls for each rail.

● UV lights to analyze the coating result over the boards.

● Extractable tray for easy clean-up of coating droplets.

● Automatic width adjustment by touch screen.

● Exhaust sensor which forces to use air extraction.

● SMEMA compatible.

Standard lengths (B) : 500 , 600 , 1000 , 1500 , 2000.

  Model

  CYCC330L

  CYCC460XL

 Machine Dimension (L x W x H)

  1000 x 1050 x 950

  1000 x 1180 x 950

 Weight

  100kg

  120kg

 PCB length

  50mm - 470mm

  50mm - 470mm

 PCB width

  50mm - 330mm

  50mm - 460mm

 PCB Thinckness

  0.6mm - 4.5mm

  0.6mm - 4.5mm

 Fixed rail to front dimension(A)

  180mm

  180mm

* Customized is available

Coating Conveyor Series specification:

  Transport height:

  950mm ±30mm

  Transfer direction:

  Left to right

  Operation side:

  Front of the machine

  Fixed rail:

  Front of the machine

  Interface:

    SMEMA

   Conveyer concept:

   Roller chain

    Belt speed:

   0.5-20m/min adjustable

  PCB edge support:

  3mm

  Components clearance:

   Top 70 mm , Bottom 70 mm or specify

  Power supply:

  230 VAC/50 Hz/1 Ph

   Power consumption:

  150VA max

  Load bearing:

  Max 3kg/PCB

Coating Conveyor Series Options:

● Signal Light

● High-clearance on request

● 2 segments Conveyor

● Automatic width adjustment by touch screen

● Exhaust sensor which forces to use air extraction

● ESD flat belt of 10mm width instead of roller chain

● Other options available on request
