This unit is used to link between production machines or board handling units.

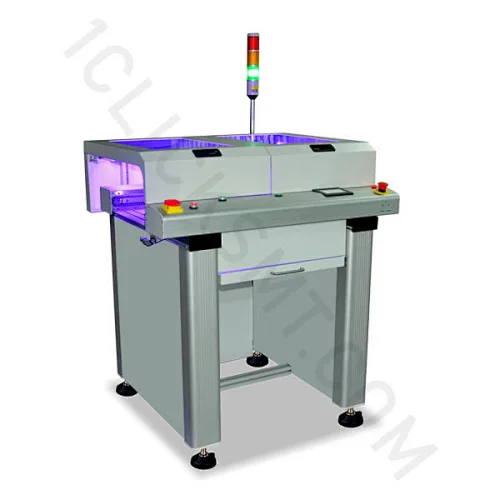

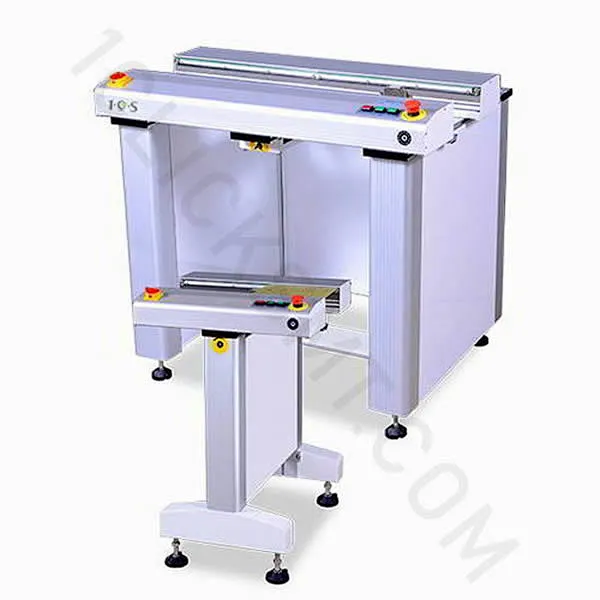

High Version Conveyor Series Features
● Pannasonic PLC Program control.
● Start / Stop push button.
● Anti-static conveyor belt.
● Centre PCB stop position.
● Easy way of belt replacement.
● Inspect and by-pass mode selectable.
● Sturdy structure offers reliable operation in demanding production.
● PCB precise stopping in position.
● Smooth and parallel width adjustment.(lead screw)
● SMEMA compatible.

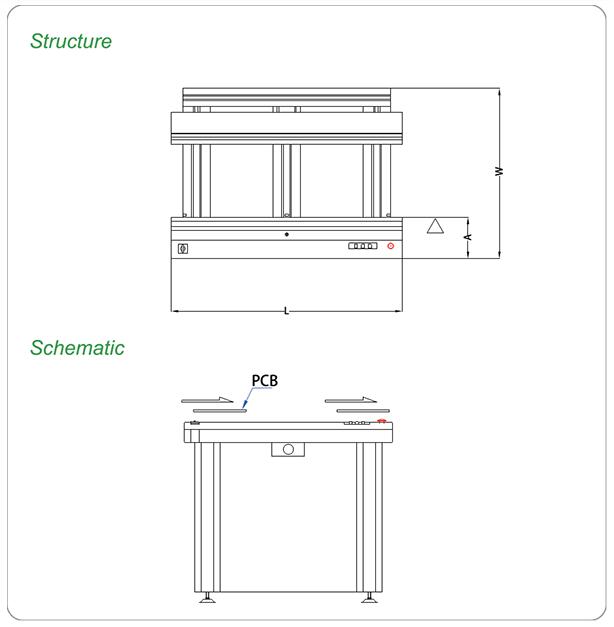

High Version Conveyor Series Dimension
|
● Transport height: |
900mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD flat belt |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
| ●Components clearance: | Bottom 30 mm or specify |
|
● Power supply： |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
100VA max. or specify |
| ●Load bearing: | 1.5kg/PCB |
Standard lengths (B) : 500 , 600 , 1000 , 1500 , 2000 .
|
Model |
CYX330L (B) |
CYX460XL (B) |
|
Machine Dimension (L x W x H) |
(B) x 750 x 920 |
(B) x 880 x 920 |
|
Weight |
85-100kg |
95-110kg |
|
PCB length |
50mm - 445mm |
50mm – 457mm |
|
PCB width |
50mm - 330mm |
50mm – 460mm |
|
PCB Thinckness |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
|
Fixed rail to front dimension(A) |
180mm |
180mm |
* Customized is available
High Version Conveyor Series Options
●Light fixture
● Additional working table
● Non standard conveyor / segment lengths.
● Elecrical width adjustment.(control by button).
● Automatic width adjustment. (set in touchscreen)
● Dust cover.(customized length)
● Cooling system.(0.5m long 4 fans / 1m long 8 fans or specify)
● Other options available on request.
