Telescopic Conveyor Series

Telescopic Conveyor Series

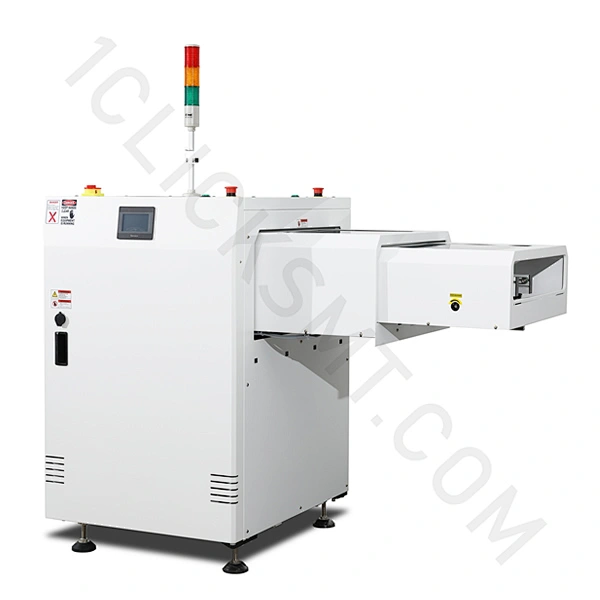

The unit provides a 'normal open' passage in a PCB assembly line.

An integrated conveyor segment slides across the opening to deliver PCB to downstream machine.

Telescopic Conveyor Series Features

● Pannasonic PLC Program control.

● Fully enclosed design.

● Normal Opened.

● Electrically driven for smooth extension and retraction.

● Smooth and parallel width adjustment.(lead screw).

● SMEMA compatible.

Telescopic Conveyor Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:


● Conveyer concept:

ESD flat belt

● Belt speed:

0.5-20m/min adjustable

● PCB edge support:


Components clearance: Bottom 30 mm or specify

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

100VA max. or specify

● Machine cycle time:

± 16 seconds

● Passageway:

750mm or specify

Load bearing: 1.5kg/PCB

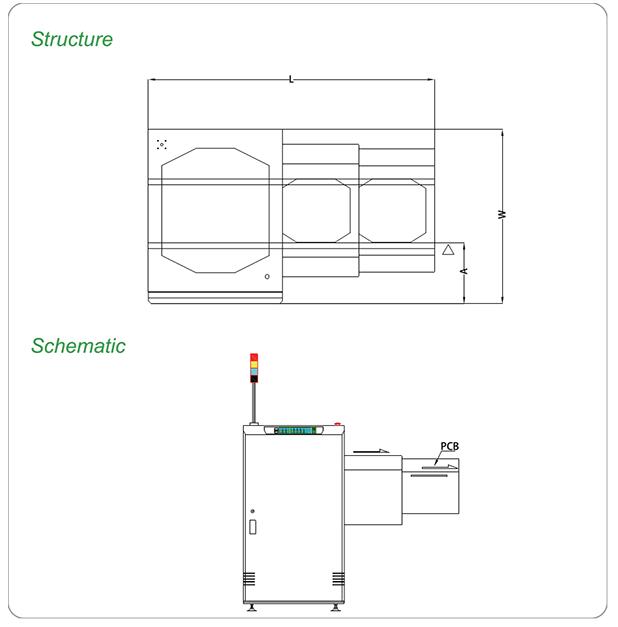

 Machine Dimension (L x W x H)

 1500 x 730 x 1300

 1500 x 860 x 1300




 PCB length

 50mm - 457mm

 50mm – 530mm

 PCB width

 50mm - 330mm

 50mm – 460mm

 PCB Thinckness

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 Fixed rail to front dimension(A)



* Customized is available

Telescopic Conveyor Series Options

● Passageway length is customized.

● Automatic width adjustment (set in touchscreen).

● Normal closed operation.(750 mm passage way)

● Other options available on request.
