The inspection conveyor is used when frequent visual inspection of PCB’s is required in the PCB assembly line.

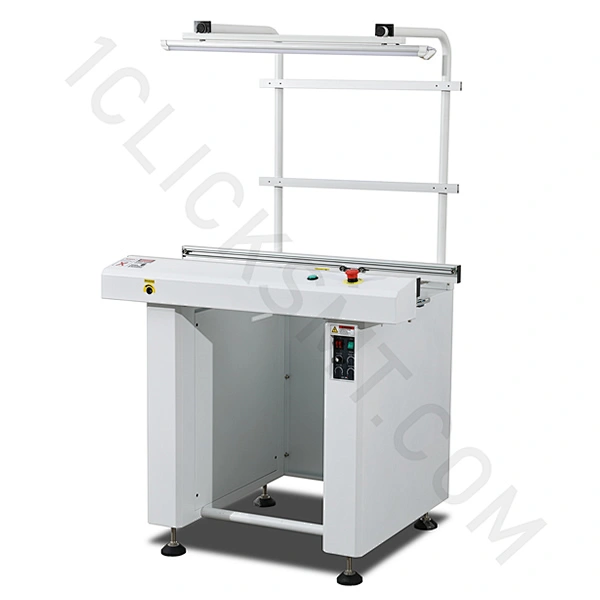

Inspection Conveyor Series Features
● Pannasonic PLC Program control.
● Overhead LED lighting.
● Start / Stop push button.
● Anti-static conveyor belt.
● Centre PCB stop position.
● Easy way of belt replacement.
● Work and by-pass mode selectable.
● Heavy bottom design to prevent shifting.
● PCB precise stopping in position.
● Smooth and parallel width adjustment.(lead screw)
● SMEMA compatible.
Inspection Conveyor Series Specifications
|
● Transport height: |
910mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD flat belt |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
| ●Components clearance: | Bottom 30 mm or specify |
| ● Power supply： |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
120VA max |
| ●Load bearing: | 1.5kg/PCB |
Standard lengths (B) : 500 , 600 , 1000 , 1500 , 2000 .
|
Model |
CYB330L (B) |
CYB460XL (B) |
|
Machine Dimension (L x W x H) |
(B) x 750 x 920 |
(B) x 850 x 920 |
|
Weight |
70-100kg |
90-130kg |
|
PCB length |
50mm - 445mm |
50mm – 457mm |
|
PCB width |
50mm - 330mm |
50mm – 460mm |
|
PCB Thinckness |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
|
Fixed rail to front dimension(A) |
230mm |
230mm |
* Customized is available
