LIFO Vertical Buffer Series
LIFO Vertical Buffer Series

LIFO Vertical Buffer Series

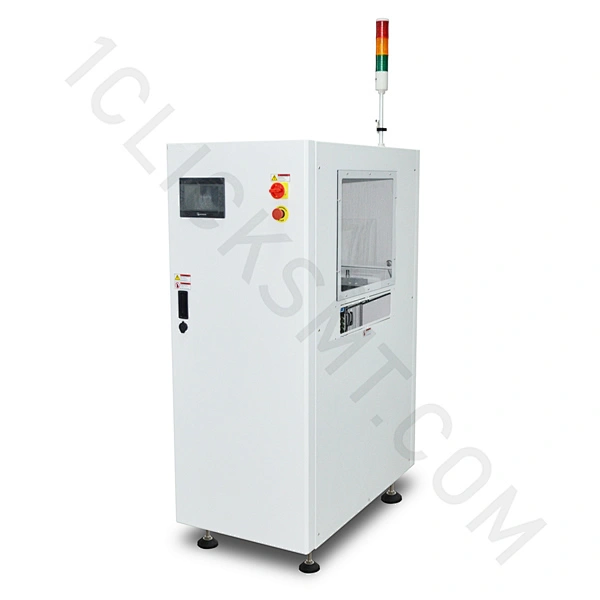

This unit allows buffering of PCB's in LIFO mode. It uses belt segments to hold the PCB over its complete lenght. When adding or extracting a PCB to/from the buffer a drive mechanism engages with the belt segment to smoothly transfer the PCB in- or out.

LIFO Vertical Buffer Series Features

● Pannasonic PLC Program control.

● Buffer in LIFO and by-pass mode.

● Selectable pitch settings.

● Enclosed construction improve level of safety

● The status of each slot can be changed independently.

●Conveyor width adjustment using hand wheel.

●Threshold signal to protect PCB's in upstream oven.

● User friendly “soft touch” LED membane control panel.

● Towerlight display for machine status.

● SMEMA compatible.

LIFO Vertical Buffer Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD flat belt

● Belt speed:

0.5-20m/min adjustable

● PCB edge support:

3mm

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

250VA max. or specify

● Air supply:

4-6 bar

● Air consumption:

15 ltr/min max

● Cycle time:

± 15 seconds

● Pitch distance:

20mm or specify

● Buffer capacity:

25 PCBs

* or specify

 Model

 STB330L

 STB460XL

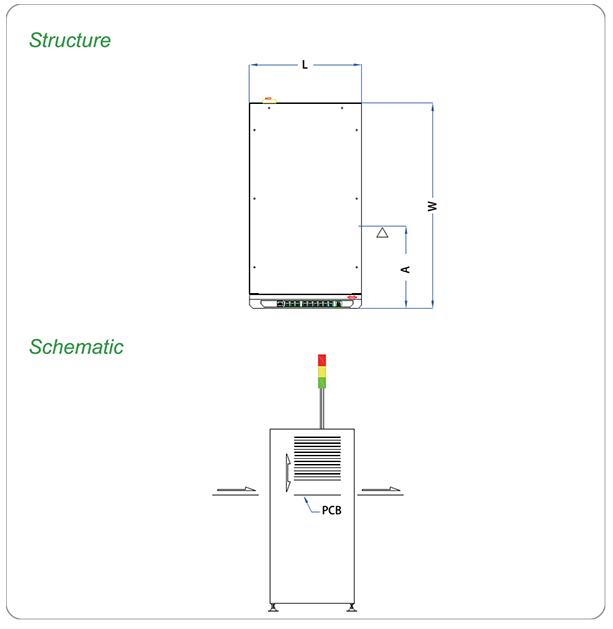

 Machine Dimension (L x W x H)

 485 x 950 x 1680

 650 x 1150 x  1680

 Weight

 150kg

 210kg

 PCB length

 50mm - 380mm

 50mm - 530mm

 PCB width

 50mm - 330mm

 50mm - 460mm

 PCB Thinckness

 0.6mm – 4.0mm

 0.6mm – 4.0mm

 Fixed rail to front  dimension(A)

 270mm

 270mm

* Customized is available

LIFO Vertical Buffer Series Options

● Automatic width adjustment (set in touchscreen).

● Additional PCB boards capacity.

● Cantilevered input- or output conveyor (length 500 mm)

● Other options available on request.
