Destacker Series

Destacker Series

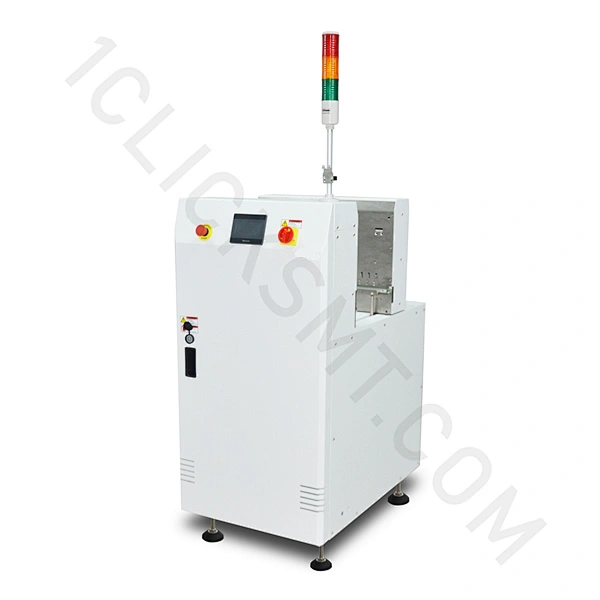

A large stack of unpopulated PCB's is placed above the ESD beltconveyor.

Unique separation cams take one PCB from the bottom of the stack and lowers it onto the ESD belt conveyor.

Destacker Series Features

● Pannasonic PLC Program control.

● Short PCB cycle time.

● Thin PCB capability.

● Uninterrupted PCB charging.

● Pre-warning low stack sensor.

● Towerlight display for machine status.

● Smooth and parallel width adjustment.(lead screw).

● By-pass mode selectable without removing PCB stack.

● SMEMA compatible.

Destacker Series Dimension

Transport height:

910mm ±30mm

Transfer direction:

Left to right

Operation side:

Front of the machine

Fixed rail:

Front of the machine

Interface:

SMEMA

Conveyer concept:

ESD flat belt

Belt speed:

0.5-20m/min adjustable

PCB edge support:

3mm

Power supply:

230 VAC/50 Hz/1 Ph

Power consumption:

150VA max. or specify

Air supply:

4-6 bar

Air consumption:

10 ltr/min max.

PCB cycle time:

±10mm

PCB thickness capability:

0.8-4.0mm

PCB stock capability:

150mm or specify.

Model

LDD460XL

Machine Dimension (L x W x H)

600 x 1035 x 1255

Weight

250kg

PCB length

50mm - 530mm

PCB width

50mm - 460mm

PCB Thinckness

0.8mm – 4.0mm

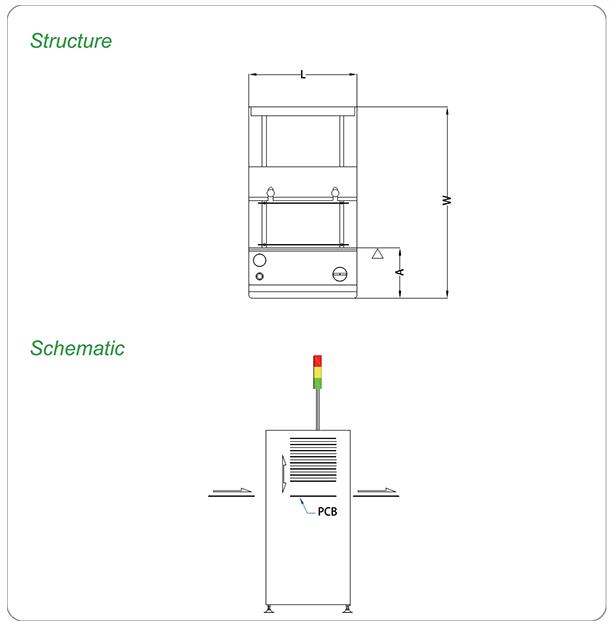

Fixed rail to front dimension(A)

234mm

* Customized is available

Destacker Series Options

● Automatic width adjustment.(set in touchscreen)

● Extension for convenient stack loading.

● Cantilevered input - or output conveyor.(length 100 mm).

● Specific destacker for bare board unloading.

● Other options available on request.
