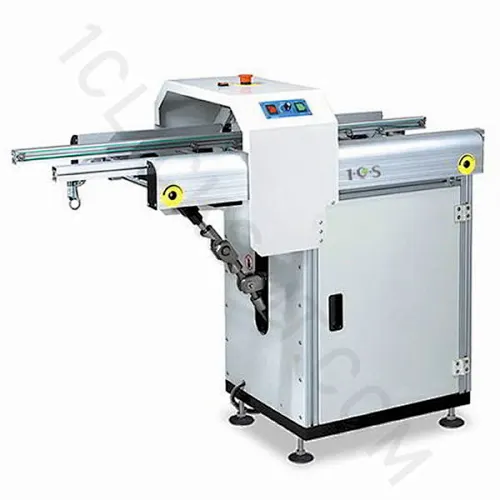

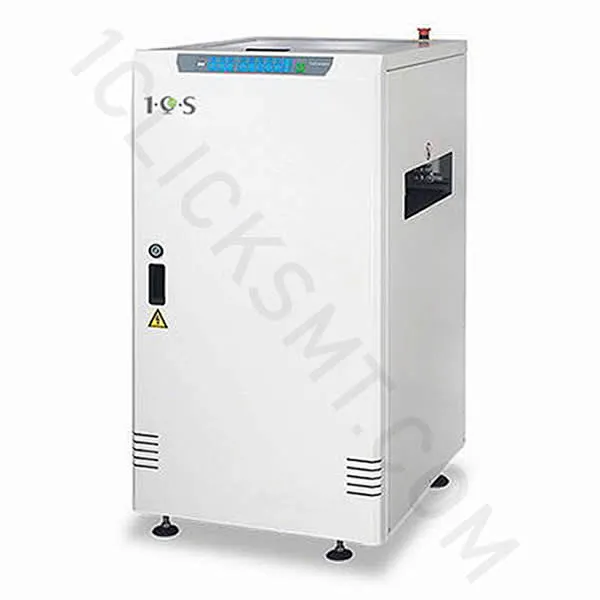

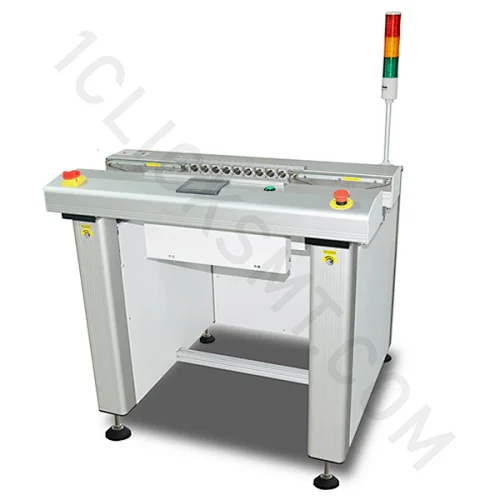

This unit is used to invert / flip PCB's (180°) for 'double-sided' process.

Inverter Series Features

● Pannasonci PLC Program control.

● By-pass mode selectable.

● Pneumatic stopper to keep PCB in position during inverting.

● Smooth and parallel width adjustment.(lead screw)

● SMEMA compatible.

Inverter Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD belt (round or flat)

● Belt speed:

0.5-20m/min adjustable

● PCB edge support:

3mm

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

150VA max. or specify

● Air supply:

4-6 bar

● Air consumption:

1.1 ltr/min max

● Cycle time:

± 8 seconds

 Model

 TRA250M

 TRA390LL

 TRA460XL

 Machine Dimension (L x W x H)

 500 x 750 x 1250

 600 x 880 x 1250

 600 x 975 x1250

 Weight

 120kg

 160kg

 185kg

 PCB length

 50mm - 330mm

 50mm - 530mm

 50mm - 530mm

 PCB width

 50mm - 250mm

 50mm - 390mm

 50mm - 460mm

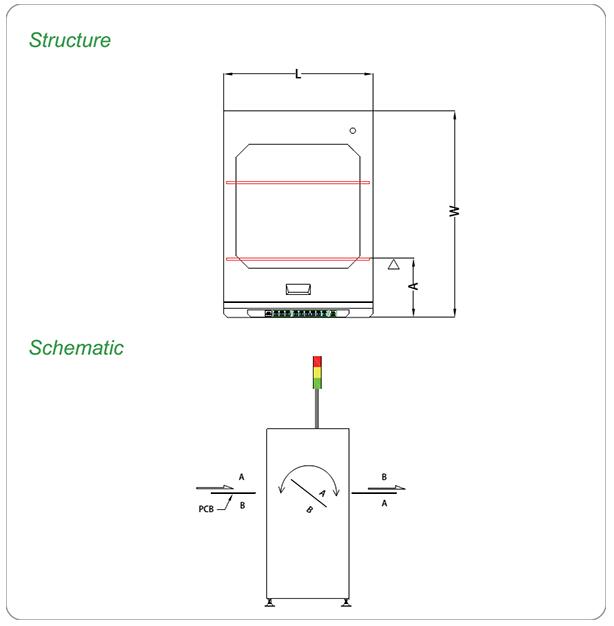

 Fixed rail to front  dimension(A)

 240mm

 240mm

 240mm

* Customized is available

Inverter Series Options

● Automatic width adjustment. (set in touchscreen)

● Cantilevered input- or output conveyor (length 500 mm)

● Touchscreen instead of button panel.

● Other options available on request.
