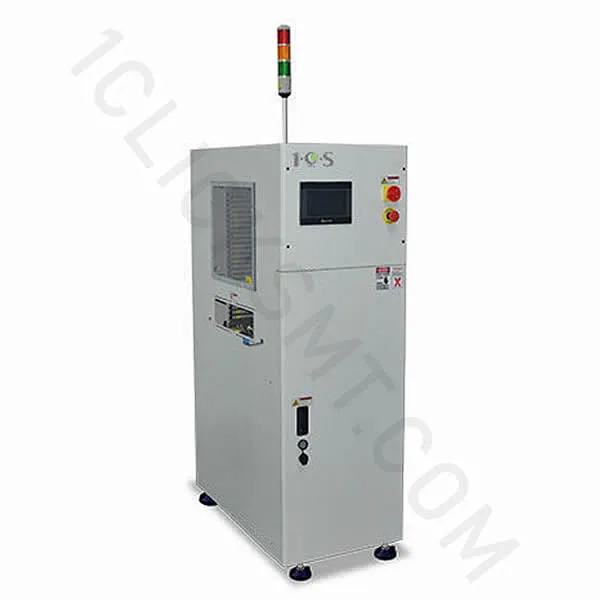

Multi Fuction Buffer Series Features
● Pannasonic PLC Program control
● Selectable FIFO, LIFO and by-pass mode.
● Selectable pitch settings.
● Enclosed construction improve level of safety.
● The status of each slot can be changed independently.
● Conveyor width adjustment using hand wheel.
● Threshold signal to protect PCB's in upstream oven.
● User friendly “soft touch” LED membane control panel.
● Towerlight display for machine status.
● SMEMA compatible.
Multi Fuction Buffer Series Specifications
|
● Transport height: |
910mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD flat belt |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
|
● Power supply： |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
250VA max. or specify |
|
● Air supply: |
4-6 bar |
|
● Air consumption: |
15 ltr/min max |
|
● Cycle time: |
± 15 seconds |
|
● Pitch distance: |
20mm or specify |
|
● Buffer capacity: |
25 PCBs or specify |
|
Model |
STC330L |
STC460XL |
|

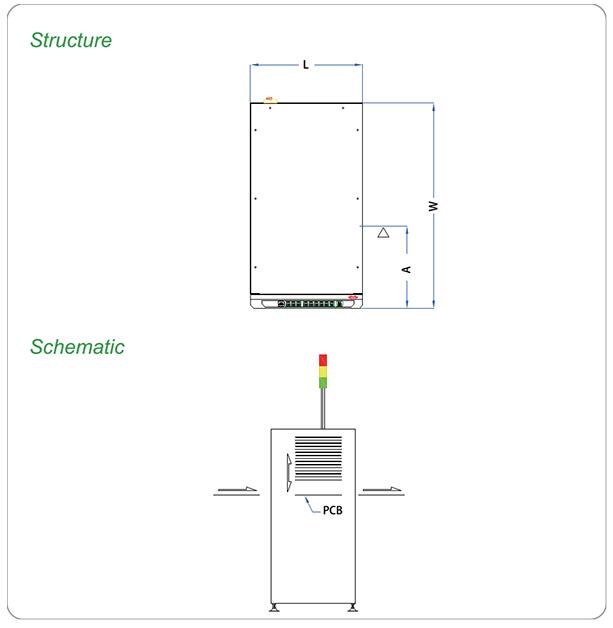

Machine Dimension (L x W x H) |
485 x 950 x 1680 |
600 x 1150 x 1680 |
|
Weight |
150kg |
210kg |
|
PCB length |
50mm - 380mm |
50mm - 530mm |
|
PCB width |
50mm - 330mm |
50mm - 460mm |
|
PCB Thinckness |
0.6mm – 4.0mm |
0.6mm – 4.0mm |
|
Fixed rail to front dimension(A) |
270mm |
270mm |
* Customized is available
Multi Fuction Buffer Series Options
● Reject mode for buffering bad board.
● Additional PCB boards capacity.
● Automatic conveyor width adjustment.
● Cantilevered input- or output conveyor (length 500 mm).
● Other options available on request.
