Multi Function Buffer Stocker Series
Multi Function Buffer Stocker Series

Multi Function Buffer Stocker Series

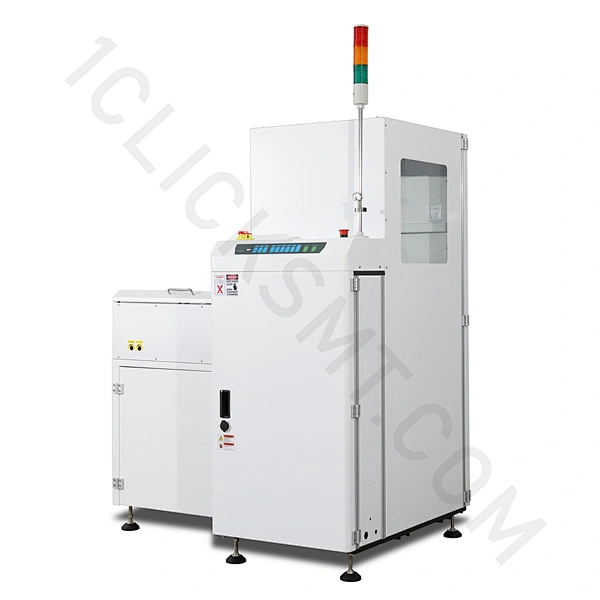

The single magazine buffer can be used as a mid-line loader or unloader, as a LIFO buffer or as a reject buffer.

Multi Function Buffer Stocker Series Features

● 5 operation modes available:   Buffer mode (LIFO) Unload mode Load mode Reject mode By-pass mode

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Dual function pusher conveyor.

● Towerlight display for machine status.

● Additional mgazines buffing capacity available upon request.

● Exchange magazine from the rear of the machine.

● Automatic magazine alignment by upper- and lower pneumatic lamping.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● SMEMA compatible.

Multi Function Buffer Stocker Series Specifications

● Transport height:

910mm ±20mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD flat belt

● Belt speed:

16m /min

● PCB edge support:

3mm

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

350VA max. or specify

● Air supply:

4-6 bar

● Air consumption:

15 ltr/min max.

● PCB loading time:

±6 seconds

● Pitch distance:

10.20.30.40mm pitch or specify.

● Max. total magazine weight:

50 kg each

* or specify

 Model

 STA250M

 STA330L

 STA390LL

 STA460XL

 Machine Dimension

 (L x W x H)

 1245 x 1175 x 1600

 1460 x 1258 x 1600

 1635 x 1450 x 1600

 1635 x 1530 x 1600

 Weight

 140kg

 200kg

 240kg

 280kg

 PCB length

 50mm - 330mm

 50mm - 445mm

 50mm - 530mm

 50mm - 530mm

 PCB width

 50mm - 250mm

 50mm - 330mm

 50mm - 390mm

 50mm - 460mm

 PCB Thinckness

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 Magazine Dimensions  (max.)

 355 x 320 x563

 460 x 400 x 563

 535 x 460 x 570

 535 x 530 x 570

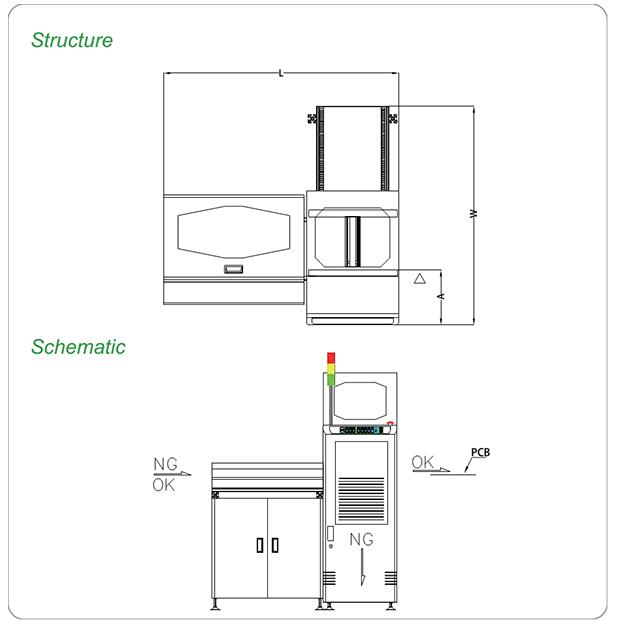

 Fixed rail to front  dimension(A)

 270mm

 270mm

 270;mm

 270mm

* Customized is available

Multi Function Buffer Stocker Options

● Additional magazine capacity.

● Additional function that Human determine the board whether it’s good or bad.

● Servo drive upgrade for shortened cycle time and allowed FIFO mode

● Other options available on request.
