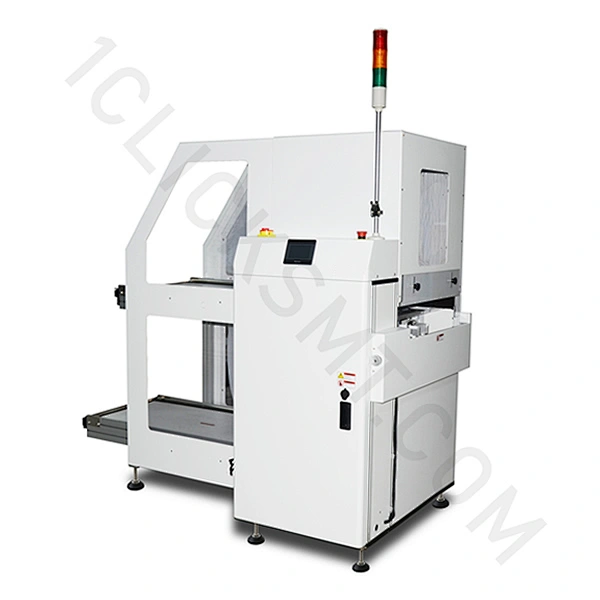

Multi Magazine Loader Series

Multi Magazine Loader Series

The unit loads your production line automatically by pushing PCB's out of the magazine onto the conveyor of the downstream machines.

Full magazines are inserted at an ergonomic low level.

Multi Magazine Loader Series Features

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Towerlight display for machine status.

● Automatic magazine change-over.

● Flexible platform to suit standard magazines.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● Automatic magazine alignment by upper and lower pneumatic clamping.

● SMEMA compatible.

Multi Magazine Loader Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:


● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

350VA max. or specify

● Air supply:

≥6 bar

● Air consumption:

10 ltr/min max.

● PCB loading time:

±6 seconds

● Magazine change-over time:

±30 seconds

● Pitch distance: pitch or specify.

● Total number of magazines:

* 1 mgazine on the lifter platform.

* 1 empty magazine on the upper magazine conveyor

* 2 full magazines on the lower magazine conveyor

* or specify.

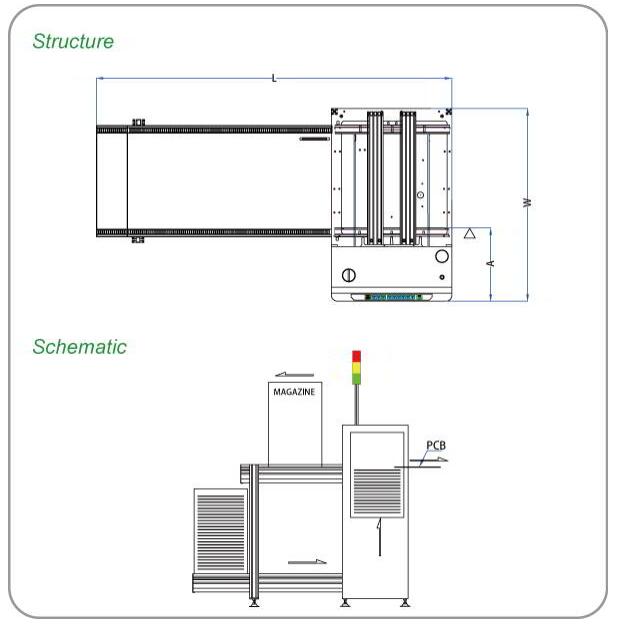

 Machine Dimension

 (L x W x H)

 1330 x 765 x 1250

 1650 x 845 x 1250

 1800 x 910 x 1250

 1800 x 970 x 1250






 PCB length

 50mm - 330mm

 50mm - 445mm

 50mm - 530mm

 50mm - 530mm

 PCB width

 50mm - 250mm

 50mm - 330mm

 50mm - 390mm

 50mm - 460mm

 PCB Thinckness

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 Magazine Dimensions  (max.)

 355 x 320 x563

 460 x 400 x 563

 535 x 460 x 573

 535 x 530 x 570

 Fixed rail to front  dimension(A)





* Customized is available

Multi Magazine Loader Series Options

● Width adjustable magazine conveyor(s).

● Additional magazine capacity.

● Touchscreen instead of button panel.

● Enclosed construction improve level of safety

● Other options available on request.
