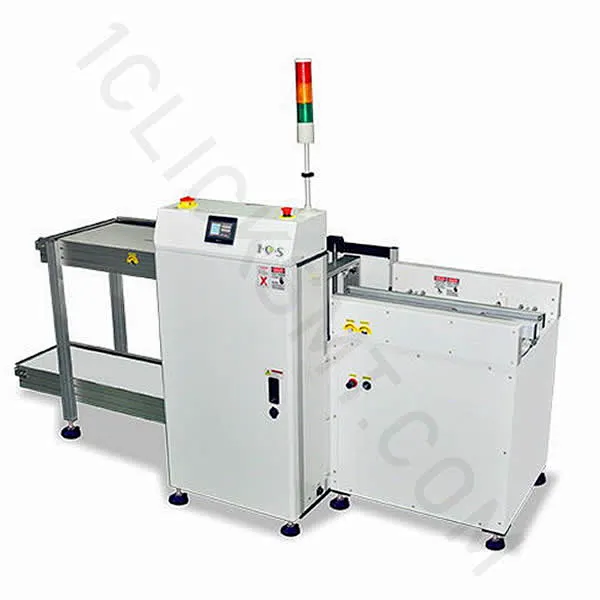

Multi Magazine Loader & Unloader 2 In 1

Multi Magazine Loader & Unloader 2 In 1

The unit provides automatic magazine change-over for continuous AOI/SPI system loading and unloading.

Boards out/in at the same side of AOI/SPI, and board is sent out from magazine to AOI/SPI system and back to same slot after inspection.

Multi Magazine Loader & Unloader 2 In 1 Features

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Towerlight display for machine status.

● Automatic magazine change-over.

● Flexible platform to suit standard magazines.

● Conveyor width adjustment using hand crank.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● SMEMA compatible.

Multi Magazine Loader & Unloader 2 In 1 Dimension

● Transport height:

950mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:


● Conveyer concept:

ESD belt(round or flat)

● Belt speed:

16m /min adjustable

PCB edge support: 3mm
Components clearance:

Top 30 mm, bottom 30 mm

(depends on pitch)

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

350VA max. or specify

● Air supply:

≥6 bar

● Air consumption:

10 ltr/min max.

● PCB unloading time:

±6 seconds

● Pitch distance: pitch or specify.

● Total number of magazines:

* 1 mgazine on the lifter platform.

* 1 empty magazine on the upper

   magazine conveyor

* 2 full magazines on the lower

   magazine conveyor * or specify

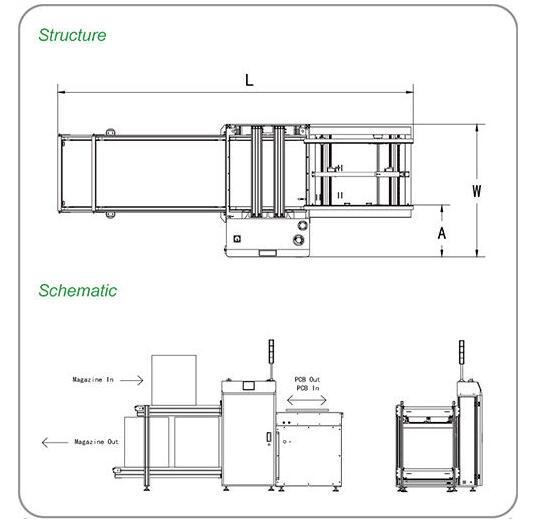

 Machine Dimension

 (L x W x H)

1930 x 760 x 1250

 2220 x 845 x 1250

 2660 x 909 x 1250

 2660 x 979 x 1250






 PCB length

 50mm - 330mm

 50mm - 445mm

 50mm - 530mm

 50mm - 530mm

 PCB width

 50mm - 250mm

 50mm - 330mm

 50mm - 390mm

 50mm - 460mm

 PCB Thinckness

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 Magazine Dimensions  (max.)

 355 x 320 x563

 460 x 400 x 563

 535 x 460 x 570

 535 x 530 x 570

 Fixed rail to front  dimension(A)





* Customized is available

Multi Magazine Loader & Unloader 2 In 1 Options

● Additional magazine capacity.

● Enclosed construction improve level of safety.

● Width adjustable magazine conveyor(s).

●Other options available on request.
