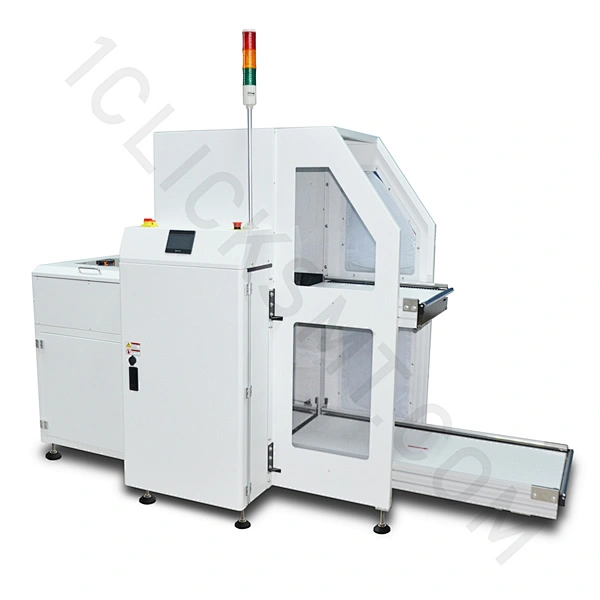

Multi Magazine Unloader Series

Multi Magazine Unloader Series

The unit provides automatic magazine change-over for continuous line unloading.

PCB's are collected from an upstream pusher conveyor and pushed into the magazine. Full magazines are offl oaded at an ergonomic low level.

Multi Magazine Unloader Series Features

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Towerlight display for machine status.

● Automatic magazine change-over.

● Flexible platform to suit standard magazines.

● Conveyor width adjustment using hand crank.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● SMEMA compatible.

Multi Magazine Unloader Series Dimension

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:


● Conveyer concept:

ESD belt (round or flat)

● Belt speed:

16m /min

● PCB edge support: 3mm

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

350VA max. or specify

● Air supply:

≥6 bar

● Air consumption:

10 ltr/min max.

● PCB unloading time:

±6 seconds

● Pitch distance: pitch or specify

● Magazine change-over time:

± 30 seconds

● Total number of magazines:

* 1 mgazine on the lifter platform

* 1 empty magazine on the upper magazine conveyor

* 2 full magazines on the lower magazine conveyor

* or specify

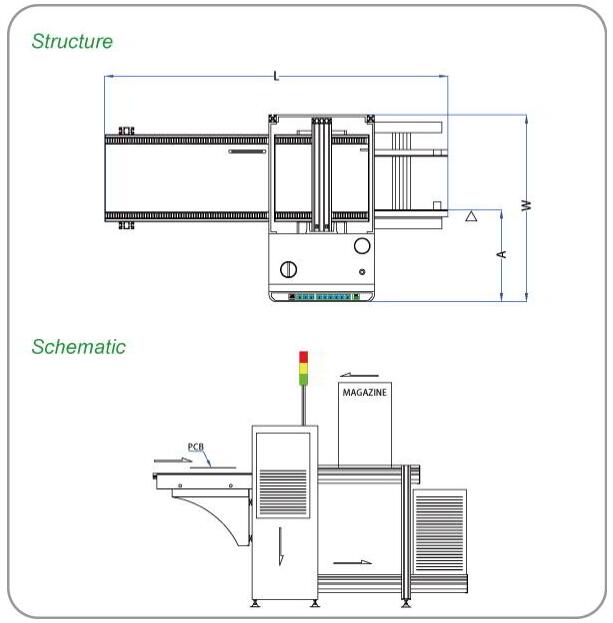

 Machine Dimension

 (L x W x H)

 1930 x 760 x 1250

 2220 x 845 x 1250

 2660 x 909 x 1250

 2660 x 979 x 1250






 PCB length

 50mm - 330mm

 50mm - 445mm

 50mm - 530mm

 50mm - 530mm

 PCB width

 50mm - 250mm

 50mm - 330mm

 50mm - 390mm

 50mm - 460mm

 PCB Thinckness

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 Magazine Dimensions  (max.)

 355 x 320 x563

 460 x 400 x 563

 535 x 460 x 570

 535 x 530 x 570

 Fixed rail to front  dimension(A)





* Customized is available

Multi Magazine Unloader Series Options

● Additional magazine capacity.

● Touchscreen instead of button panel.

● Enclosed construction improve level of safety.

● Width adjustable magazine conveyor(s).

● Other options available on request.
