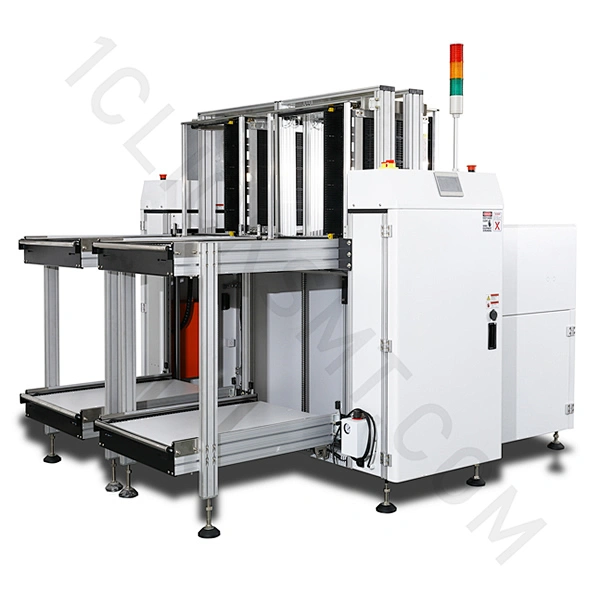

NG OK Magazine Unloader Series

NG OK Magazine Unloader Series

NG OK Magazine Unloader Series Features

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Good or bad board separation.

● Unique guide rail driven positioning of shuttle conveyor.

● Towerlight display for machine status.

● Additional mgazines buffing capacity available upon request.

● Conveyor width adjustment using hand wheel.

● Automatic magazine alignment by upper- and lower pneumatic lamping.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● SMEMA compatible.

NG OK Magazine Unloader Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:


● Conveyer concept:

ESD belt (round or flat)

● Belt speed:

16m /min

● PCB edge support:


Components clearance: Top 30 mm, bottom 30 mm

(depends on pitch)

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

500VA max. or specify

● Air supply:

4-6 bar

● Air consumption:

10 ltr/min max.

● PCB unloading time:

±10 seconds

● Magazine change-over time:

± 30 seconds

● Pitch distance: pitch or specify.

● Max. total magazine weight:

50 kg each

* or specify




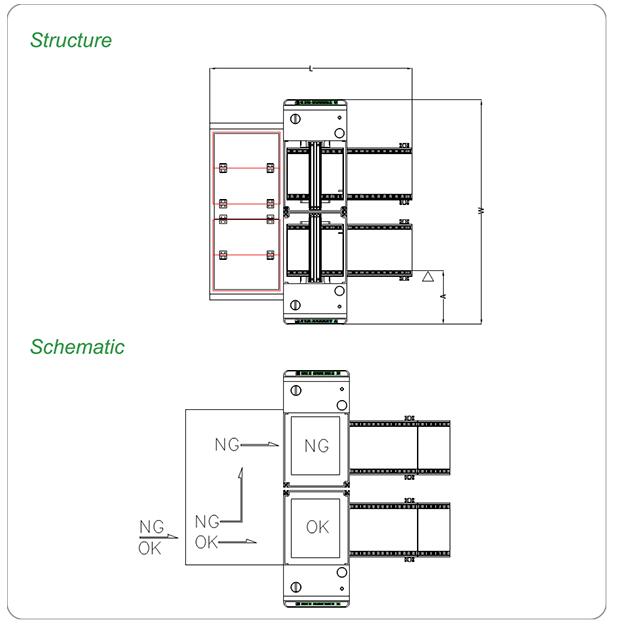

 Machine Dimension (L x W x H)

 1400 x 1550 x 1250

 1850 x 1780 x 1250




 PCB length

 50mm - 330mm

 50mm - 445mm

 PCB width

 50mm - 250mm

 50mm - 330mm

 PCB Thinckness

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 Magazine Dimensions  (max.)

 355 x 320 x563

460 x 400 x 560

 Fixed rail to front  dimension(A)



* Customized is available

NG OK Magazine Unloader Series Options

● Automatic width adjustment for shuttle conveyor.

● Additional magazine capacity.

● Touchscreen instead of button panel.

● Enclosed construction improve level of safety.

● Other options available on request.
