Single Magazine Loader Series

Single Magazine Loader Series

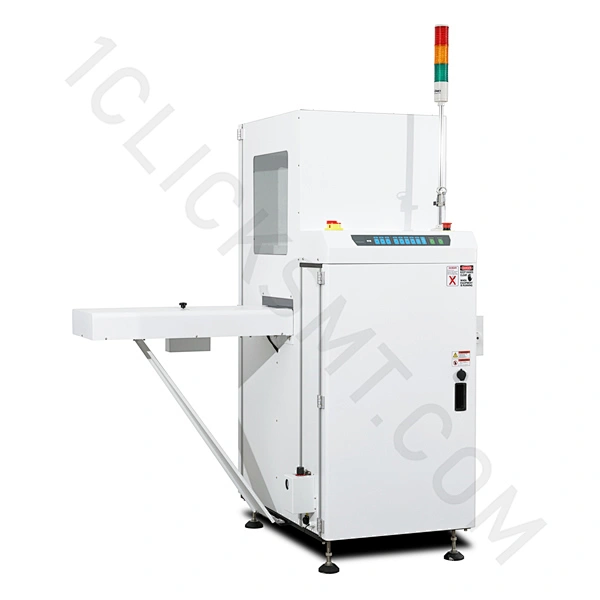

The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the downstream machine.

Single Magazine Loader Series Features

● Pannasonic PLC Program control

● Selectable pitch settings.

● Flexible platform to suit standard magazines.

● Exchange magazine from the rear of the machine.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● Magazine is manually placed on the platform and clamped in position.

● SMEMA compatible.

Single Magazine Loader Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:


● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

240VA max. or specify

● Air supply:

≥6 bar

● Air consumption:

10 ltr/min max.

● PCB loading time:

±6 seconds

● Pitch distance: pitch or specify.

Total number of magazines:

*1 mgazine on the lifter platform

* or specify

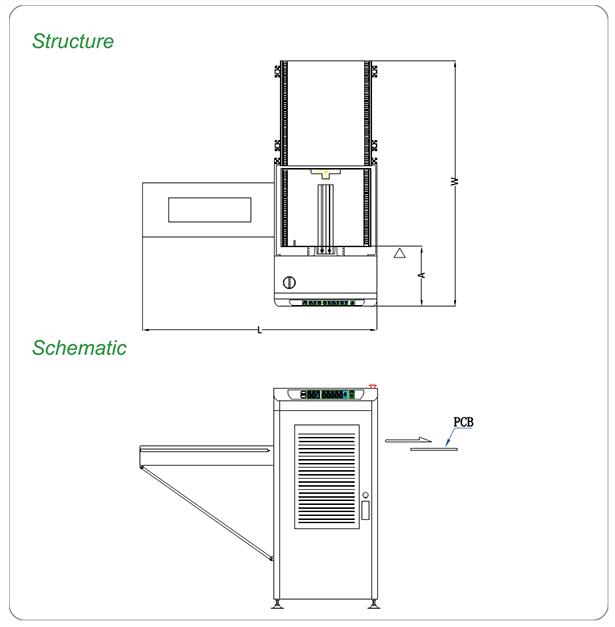

 Machine Dimension

 (L x W x H)

 900 x 1150 x 1250

 1150 x 1450 x 1250

 1450 x 1550 x 1250

 1450 x 1750 x 1250






 PCB length

 50mm - 330mm

 50mm - 445mm

 50mm - 530mm

 50mm - 530mm

 PCB width

 50mm - 250mm

 50mm - 330mm

 50mm - 390mm

 50mm - 460mm

 PCB Thinckness

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 Magazine Dimensions  (max.)

 355 x 320 x563

 460 x 400 x 563

 535 x 460 x 573

 535 x 530 x 570

 Fixed rail to front  dimension(A)





* Customized is available

Single Magazine Loader Series Options

● Touchscreen instead of button panel.

● Other options available on request.
