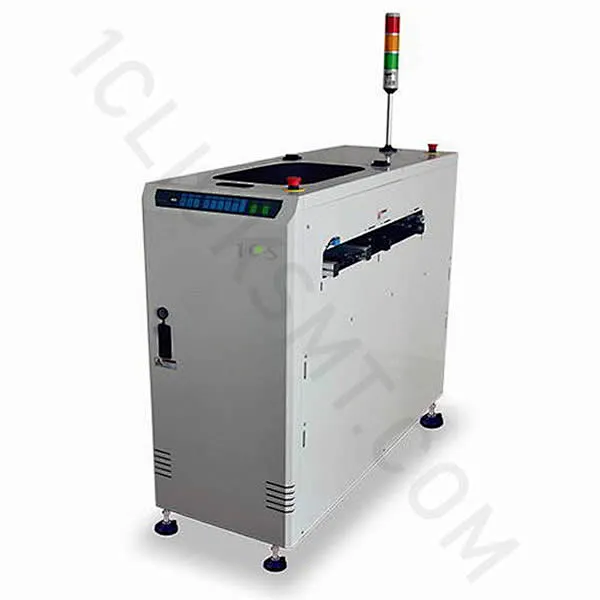

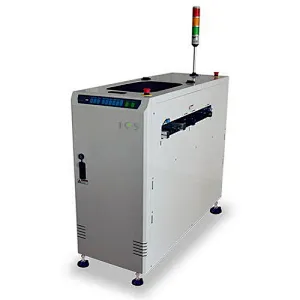

The shuttle conveyor is used for transporting boards from one line into two lines or vice versa. The orientation of the board is not changed during traversing.
Traverser / Shuttle Conveyor Series Features
● Pannasonic PLC Program control.
● By-pass mode selectable.
● Customized traversing distance.
● Towerlight display for machine status.
● Frequency controlled traversing speed.
● Enclosed design ensure highest level of safety.
● Conveyor width adjustment using hand crank.
● SMEMA compatible.
Traverser / Shuttle Conveyor Series Specifications
|
● Transport height: |
910mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD flat belt |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
|
● Power supply： |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
250VA max. or specify |
|
● Cycle time: |
Depends on traversing distance |
| ●Number of Cart | Sigle cart transportation |

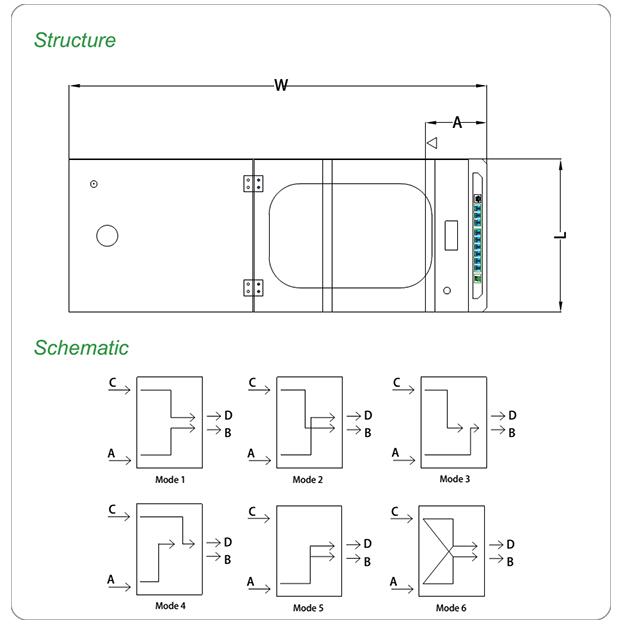

* Customized traversing distance (W)
|
Model |
TRB250M |
TRB330L |
|
Machine Dimension (L x W x H) |
503 x 1050 x 950 |
503 x 1350 x 950 |
|
Weight |
About 140kg |
About 200kg |
|
PCB length |
50mm - 470mm |
50mm - 470mm |
|
PCB width |
50mm - 280mm |
50mm - 390mm |
|
Fixed rail to front dimension(A) |
200mm |
200mm |
* Customized is available
Traverser / Shuttle Conveyor Series Options
● 2 transferring carts operation.
● Touchscreen instead of button distance.
● Customized traversing distance
● Good - or bad board separation.
● Automatic conveyor width adjustment.
● Servo drive upgrade for shortened cycle time.
● Cantilevered input- or output conveyor .(length 500 mm)
● Other options available on request.
