Turn Conveyor Series
Turn Conveyor Series

Turn Conveyor Series

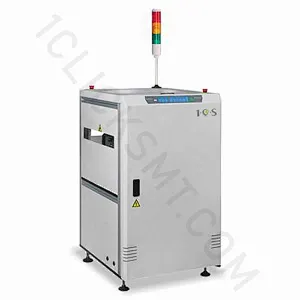

The turn conveyor is designed to change the flow direction of a PCB assembly line. The PCB is transferred onto the built-in ESD belt conveyor, which turns either clockwise or counter-clockwise.

Turn Conveyor Series Features

● Pannasonci PLC Program control.

● By-pass mode selectable.

● PCB direction flows can be customized.

● Towerlight display for machine status.

● Enclosed design with built-in torque limiter ensures highest level of safety

● Conveyor width adjustment using hand crank.

● SMEMA compatible.

Turn Conveyor Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD belt (round or flat)

● Belt speed:

0.5-20m/min adjustable

● PCB edge support:

3mm

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

150VA max. or specify

● Cycle time:

± 5 seconds

 Model

 TRC250M

 TRC330L

 TRC390LL

 TRC460XL

 Machine Dimension

 (L x W x H)

 500 x 500 x 1200

 580 x 580 x 1200

 700 x 700 x 1200

 750 x 750 x 1200

 Weight

 170kg

 190kg

 220kg

 260kg

 PCB length

 50mm - 330mm

 50mm - 450mm

 50mm - 530mm

 50mm - 530mm

 PCB width

 50mm - 250mm

 50mm - 330mm

 50mm - 390mm

 50mm - 460mm

 PCB Thinckness

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 0.6mm – 4.5mm

 Magazine Dimensions  (max.)

 355 x 320 x563

 460 x 400 x 560

 535 x 460 x 570

 535 x 530 x 570

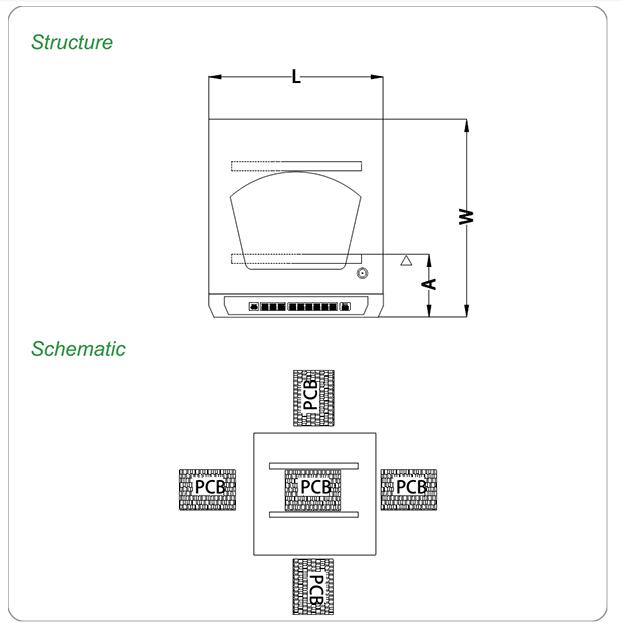

 Fixed rail to front  dimension(A)

 180mm

 180mm

 180mm

 180mm

* Customized is available

Turn Conveyor Series Options

● Automatic width adjustment. (set in touchscreen)

● Good or bad board separation

● Touchscreen instead of button panel.

● Cantilevered input- or output conveyor (length 500 mm)

● Other options available on request.
