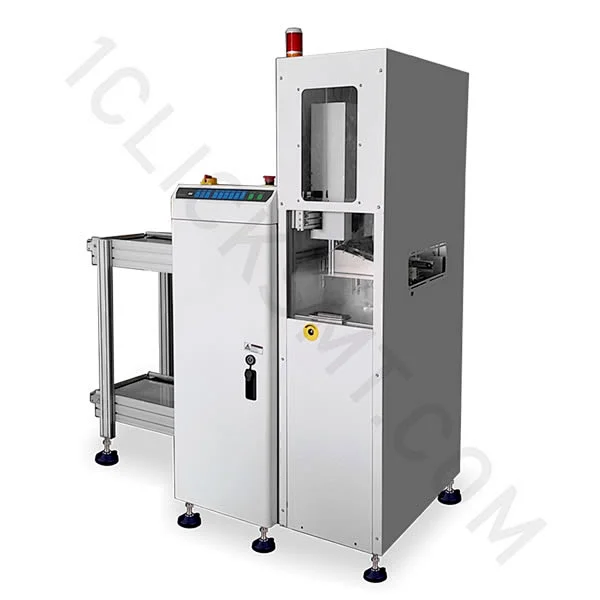

Vaccum and magazine combo loader

Vaccum and magazine combo loader

The unit loads your production line automatically by pushing PCB's out of the magazine onto the conveyor of the downstream machines.

Full magazines are inserted at an ergonomic low level.

Vaccum and magazine combo loader Features

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Towerlight display for machine status.

● Binding function of vaccum loader and magazine loader.

● Vaccum loading,Magazine loading and alternated mode selectable.

● SMEMA compatible.

Vaccum and magazine combo loader Specifications

Transport height:

910mm ±30mm

Transfer direction:

Left to right

Operation side:

Front of the machine

Fixed rail:

Front of the machine



Power supply:

230 VAC/50 Hz/1 Ph

Power consumption:

500VA max. or specify

Air supply:

≥6 bar

Air consumption:

10 ltr/min max.

PCB loading time:

±6 seconds

Magazine change-over time:

±30 seconds

Pitch distance: pitch or specify.

PCB stock capability:

125mm or specify.

Total number of magazines:

* 1 mgazine on the lifter platform.

* 1 empty magazine on the upper magazine conveyor

* 1 full magazine on the lower magazine conveyor

* or specify.






Machine Dimension

(L x W x H)

1450 x 765 x 1520

1850 x 845 x 1520

2060 x 925 x 1520

2060 x 970 x 1520






PCB length

50mm - 330mm

50mm - 445mm

50mm - 530mm

50mm - 530mm

PCB width

50mm - 250mm

50mm - 330mm

50mm - 390mm

50mm - 460mm

PCB Thinckness

0.6mm – 4.5mm

0.6mm – 4.5mm

0.6mm – 4.5mm

0.6mm – 4.5mm

Magazine Dimensions (max.)

355 x 320 x563

460 x 400 x 563

535 x 460 x 573

535 x 530 x 570

Fixed rail to front dimension(A)





* Customized is available

Vaccum and magazine combo loader Series Options

Alternative suction cup size.

Additional magazine capacity.

Touchscreen instead of button panel.

Enclosed construction improve level of safety.

● Other options available on request.
