Vaccum board Loader Series

Vaccum board Loader Series

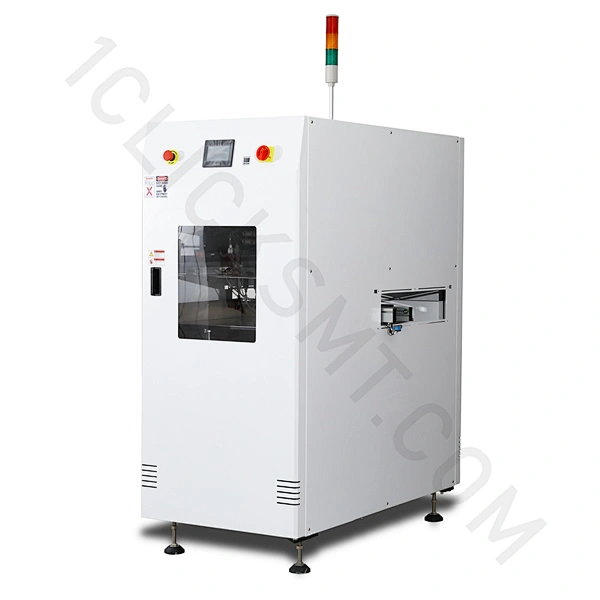

The unit is designed for automatic loading of unpopulated PCB's onto the line using suction cups.

The top PCB is lifted from stack and lowered onto belt segment.

Vaccum board Loader Series Features

● PLC Program control.

● Large stock capacity.

● Empty stack sensor.

● Flexible suction cup positioning.

● Convenient front door stack loading.

● Towerlight display for machine status.

● Smooth and parallel width adjustment.(lead screw).

● By-pass mode selectable without removing PCB stack.

● SMEMA compatible.

Vaccum board Loader Series Specifications

Transport height:

900mm ±30mm

Transfer direction:

Left to right

Operation side:

Front of the machine

Fixed rail:

Front of the machine

Interface:

SMEMA

Conveyer concept:

ESD belt (round or flat)

Belt speed:

0.5-20m/min adjustable

PCB edge support:

3mm

Power supply:

230 VAC/50 Hz/1 Ph

Power consumption:

150VA max. or specify

Air supply:

4-6 bar

Air consumption:

10 ltr/min max.

Diameter sictopm pads:

15mm or specify

PCB thickness capability:

0.2-4.0mm

PCB stock capability:

240mm or specify.

Model

LDV330L

LDD460XL

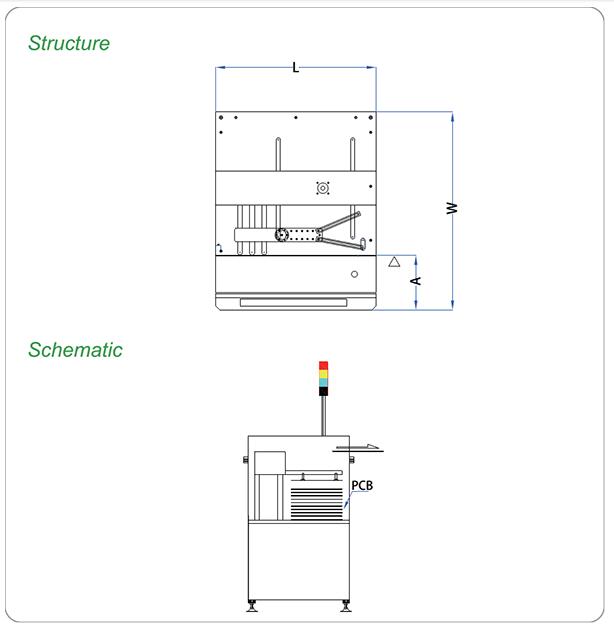

Machine Dimension (L x W x H)

650 x 730 x 1035

800 x 800 x 1035

Weight

200kg

240kg

PCB length

50mm - 380mm

50mm - 530mm

PCB width

50mm - 330mm

50mm - 460mm

PCB Thinckness

0.6mm – 4.0mm

0.6mm – 4.0mm

Fixed rail to front dimension(A)

340mm

340mm

* Customized is available

Vaccum board Loader Series Options

● SMEMA cable.(additional).

● Alternative suction cup size.

● Cantilevered input - or output conveyor .(length 100 mm).

● Other options available on request.
