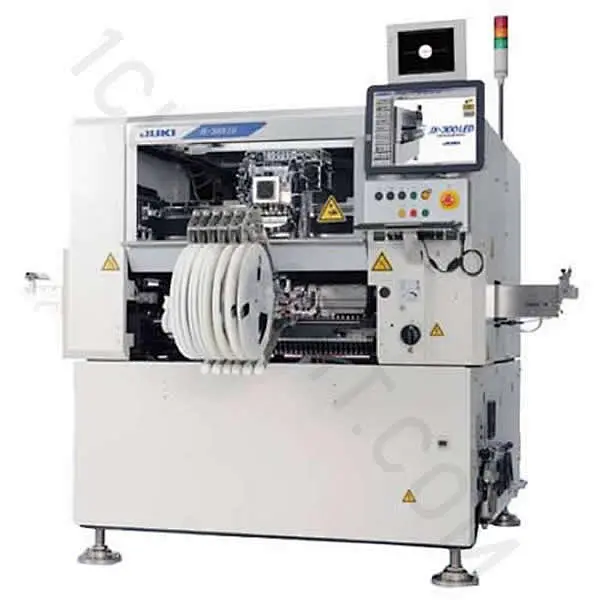

JX-300 LED Catalogue

JX-300 LED Catalogue

23,300CPH chip (Laser centering/Optimum)

18,300CPH chip (Laser centering/ IPC9850)

One multi-nozzle laser head (6 nozzles)

From 0603(0201) to 33.5mm square components



 JX-300 LED Catalogue Specification


  JX-300 LED

  Board size

  standard specification   50×50 ~ 1,200×360mm
  Longer sized PWB ※1   50×50 ~ 1,500×360mm

  Component height


  Component size

  Laser recognition

  0603(0201) ~ □33.5mm

  Placement speed

  Optimum   23,300CPH
  IPC9850     18,300CPH

  Placement accuracy


  Feeder inputs

  Max.40 in case of 8mm tape

  Power supply

  200 to 415 VAC, 3-phase

  Apparent power


  Oparating air pressure


  Air consumption

  345L/min(Opt.:Vacuum Pump 50L/min)

  Machine dimensions(W×D×H) ※2




  ※1 Long board support is optional.

  ※2 When equiped with the long board option, the machine width is 2,520mm.

JX-300LED Options

  Recognition system

  HMS(Height Measurement System) / Bad mark reader

  Operation system

  Touch panel / HOD / Feeder position indicator


  Applicability to long PWB(1,500mm) ※1 / IN・OUT buffer / Support table ※1 Automatic board width adjustment

  Electrical protection

  Ground-fault interrupter / UPS


  FCS calibration jig / Super foot / Caster / Vacuum Pump Solder lighting / Component quantity control



  Component handling and feeders

  Tape feeder(8 ~ 72mm) / Bulk feeder / Stick feeder Matrix Tray Server TR5 ※2 / TR5S attachment kit ※2 / Tray station ※3 Trash box / Splicing jig / Tape reel mounting base / Feeder stocker Feeder Calibration Jig with Monitor

  ※1 Check with factory for details.

  ※2 TR5S installation kit is required to use the TR5S matrix tray server.

  ※3 Tray station is required to use the tray holder on rear side.

  ※Please refer to the product specification for details.
