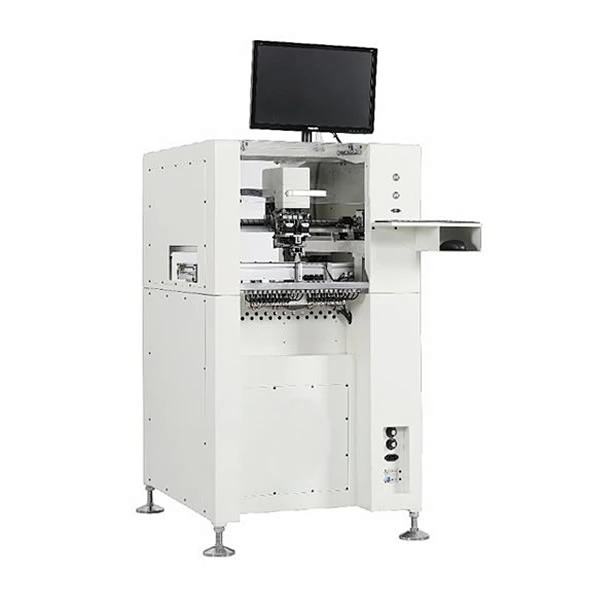

Compact Flexible Mounter CM-S4 Features |
| Realizes Placement Speed of 4,000 CPH |
|

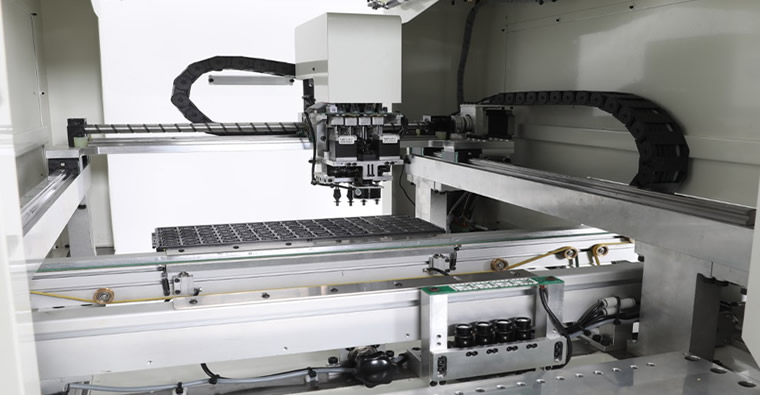

X/Y axis equipped with step-servo motor, realizes the placement speed of 4000 CPH with 4 spindles and stage vision. |
 |
| Reinforced Applicability to Parts and PCBs: |
|
● Applicable to parts from 0201 to □30mm parts ● Applicable to Max. 300(L) x 250(W) PCBs |

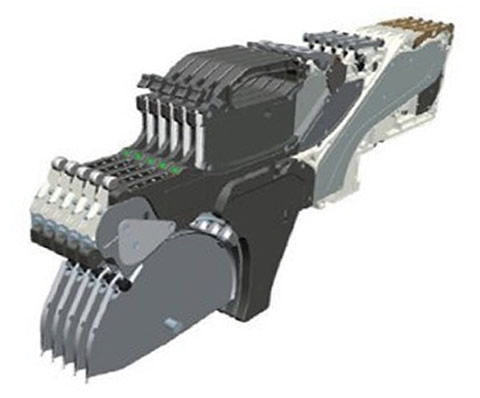

| Electrically Driven High Precision Feeder |
 |
| Self-developed software simplifies production, easy operating and programming. |
Compact Flexible Mounter CM-S4
|
Compact Flexible Mounter CM-S4 Specifications: |
|
|
Machine model |
CM-S4 |
|
Vision system |
Standard Equipped with: Fiducial Camera , Stage camera. |
|
Number of Spindles |
1 head * 4 spindles |
|
Driving method |
X/Y axis with step-servo motor , Z axis with step motor |
|
Mounting speed |
4000 CPH（Real mounting speed :3000 CPH） |
|
Component range |
0201˜30mm , max component height :15mm |
|
PCB |
Min.50(L)*50(W) , 300(L)*250(W) |
| Standard：300(W)*250(W)mm | |
| Thickness0.5-3mm | |
|
Conveyor |
Only Left to right , 900+/-20mm |
|
Feeder station |
Standard : 8mm Feeder *18pcs on the front , option: addtional 25pcs * 8mm |
|
Power supply / air pressure |
1P, AC 220V /50HZ, 0.5~0.7Mpa |
|
Power |
1.5KW |
|
Machine weight |
150KG |
|
Machine size |
700(L)*900(W)*1300(H)mm |
