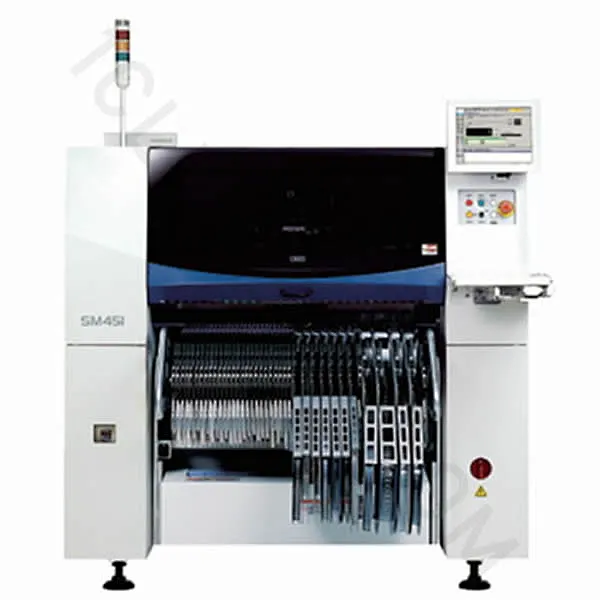

Odd shape component placer SM451

As a high precision multi-functional component placer equipped with a high precision force control head based on the SM421 platform,the SM451 applies linear scale to the X-Y axes to improve the placement accuracy. Basically, the machine handles components from 0402 microchips, bare chips and PiP insert components. In addition, the machine can place special componnts by handling components with heights of up to 28mm ad well ae POP and providing a gripper nozzle, lift-off check, rear side reflection recognition, etc.

Available for Various

Odd-shaped Components

In order to reinforce its capacity to handle odd-shaped components.

The gripper nozzle, component lead lift-off (warp) check using a laser

sensor, rear sensor and Pin recognition function for PiP placement are added.

High Precision Force Control

Allows precision placement of PiP insert components, flip

chips, etc.,by applying the Z axis force control system controlling

the force widely from 0.1N to 50N.

Panorama View Function

Since large-sized components are not viewed in one screen,

it is hard to adjust their pickup or placement positions. In order

to remove such inconvenience, the panorama view function is added

to allow large components to be viewed within the FOV of a camera.

Component Monitoring before/after Plancement

Checks for nozzle contamination during production to prevent non-insertion

and dumping of a large number of components in advance, ensuring high

quality production.Time of inspection-Before/after ANC; before/after

component placement;and after component dumping

Multi-Vendor Component Management Function

When the same components are supplied from different

component supply devices, this function allows components to be

use without changing a PCB file and downloading a new PCB file.

On-the-fly Placement Method

Owing to techwin's own On-the-fly image recognition technology which

allows component recognition without stopping while moving after

component pickup , placement speed is maximized by minimizing the

moving time between the pickup position and placement position and

reducing the recognition time to zero.

Added a new function maximizing the operational convenience of customers.

Easy Component Registration New Part Editor

A Drag & Drop component registration system, allowing registration of component

informatic recognition and rotation by simply clicking the mouse. (When applying Elite2)

In addition, user convenience is further reinforced by unifying the on-line/off-line

comvenience is further reinforced by unifying the on-line/off-line component

registration systems.

Mixed Use of Electric Feeder and Pneumatic Feeder

Mixed use of electric and pneumatic feeders in the same feeder base

is available for SM series component placers. The investment in production

can be minimized by using these feeders along with existing feeders.

The highest applicability to long and large PCBs among

machines of the same class

SM451 Features:
1	Placement Speed	Chip 8,500CPH(IPC9850)
		QFP 4,000CPH(IPC9850)
2	Applicable Component	0402~Max. □57×42mm（h28mm）
3	Placement Accuracy	±50μm@±3σ/Chip
		±25μm@±3σ/QFP
4	Applicable PCB	L460×W420×1Lane (Standard)
		L610×W460×1Lane(Option)

SM451 Specification：
Model			SM451
Alignment			Stage Vision
Number of Spindles			4 Spindes × 1 Gantry
Placement Speed			Chip 1608 8,500 CPH (IPC9850)
			SOP 7,000 CPH (IPC9850)
			QFP 4,000 CPH (IPC9850)
Placement Accuracy	Chip		±50μm@μ±3σ
	QFP		±25μm@μ±3σ
Component Range	Flying Vision		0402~□22mm IC（Fix Type) (Option:0402)
	Stage Vision		~43×32mm IC （Lead Pitch 0.3mm~□55mm（MFOV)
			~57×42mm IC （Lead Pitch 0.4mm~□55mm（MFOV) ~ 100mm Connector
	Max.Height		28mm
	Min.		50(L)×40（W)
	Max.	Single Lane	460(L×420（W)
			510(L)×420（W）
			610(L)×460（W）
		Dual Lane	NA
	PCB Thickness		0.38~4.2
Feeder Capacity (8mm standard）			60ea/56ea(Dacking Cart)
			Option: 120ea/112ea(Dacking Cart)
Utility	Power		AC200/208/220/240/380/415V(50/60Hz, 3Phase)
			Max.4.7kVA
	Air Consumption		0.5~0.7MPa(5.0~7.0kgf/cm²）
			220Ne/min
			50Ne/min (vacuum pump）
Mass(kg)			Approx.1820
External Dimension (mm）			1650(L）×1680(D)×1485(H）
