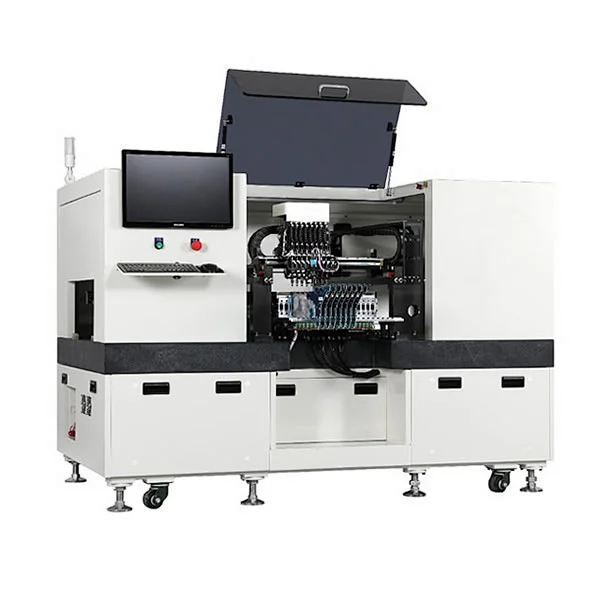

High Speed LED&Lens Mounter CM-V8

High Speed LED&Lens Mounter CM-V8

High Speed LED&Lens Mounter CM-V8 Features

  Realizes high Placement Speed of 40,000 CPH for LED, 18,000 CPH for Lens

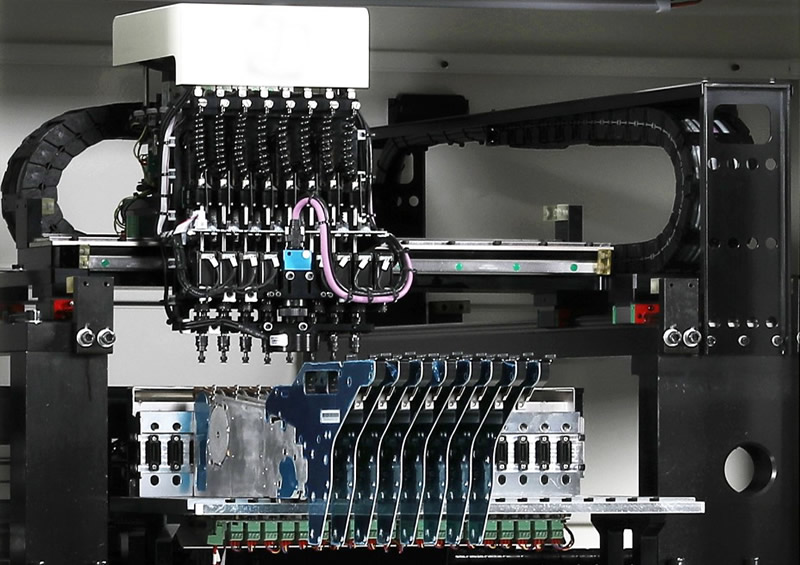

  8 spindles * 1 grantry driven by linear motor.

8 spindles * 1 grantry driven by linear motor.
  Suitable parts and boards:

●   Applicable to parts:LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206. Lens.

●   Applicable to Max. 1200(L) x 460(W) PCBs for long  boards applied to LEDs and lens.

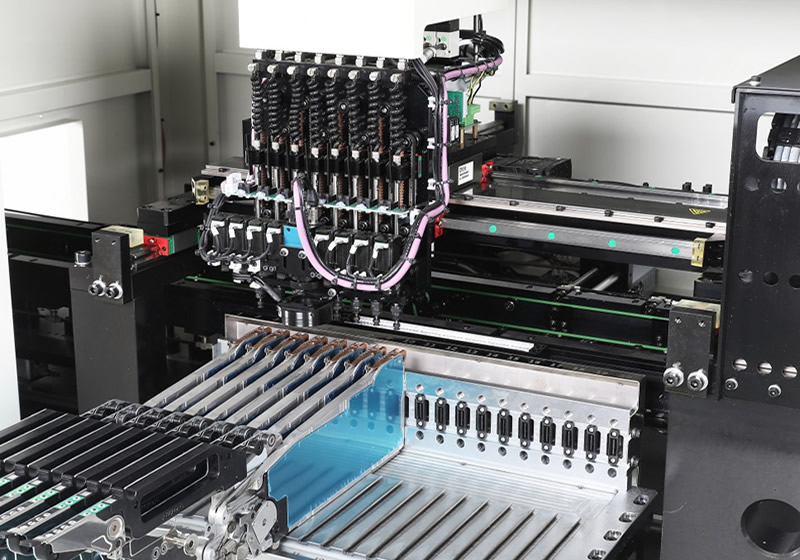

  Solid granite platform, X/Y axis driven by linear motor, ensure machine running fast and stably.

  Electronic feeder ensure stable compoment feeding.

  High quality parts ensure long service life of machine.

Solid granite platform, X/Y axis driven by linear motor, ensure machine running fast and stably.

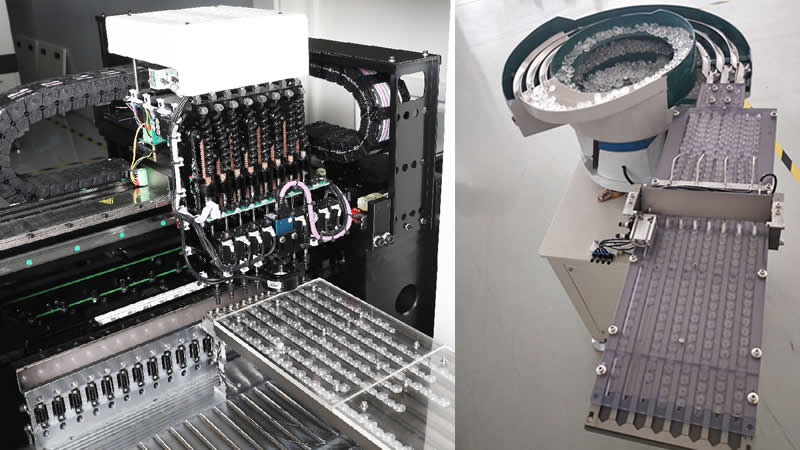

  8 Channel lens vibration bowl feeder for lens mounting.(Option)
8 Channel lens vibration bowl feeder for lens mounting.(Option)


High Speed LED&Lens Mounter CM-V8 Specifications

  Machine model

  CM-V8

  Alignment

  Flying vision

  Number of Spindles

  1 head *8 spindles

  Driving method

   X /Y with linear motor, Z with step motor

  Mounting speed

  Max 40,000 CPH for mounting LED, 18000CPH for mounting lens

  Component range

  LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206, lens. Max component height: 12mm

  PCB

  Max 460(W)*1200(L)mm, thickness: 0.5 to 3.0mm

  Conveyor

  900+/-20mm

  Feeder station

  20 pcs *12mm feeder

  Power supply/air pressure

  1P, AC 220V /50HZ, 0.5~0.7Mpa

  Power

  3.2KW

  Machine weight

  Approx 1600KG

  Machine size

  2000(L)*1400(W)*1400(H)mm
