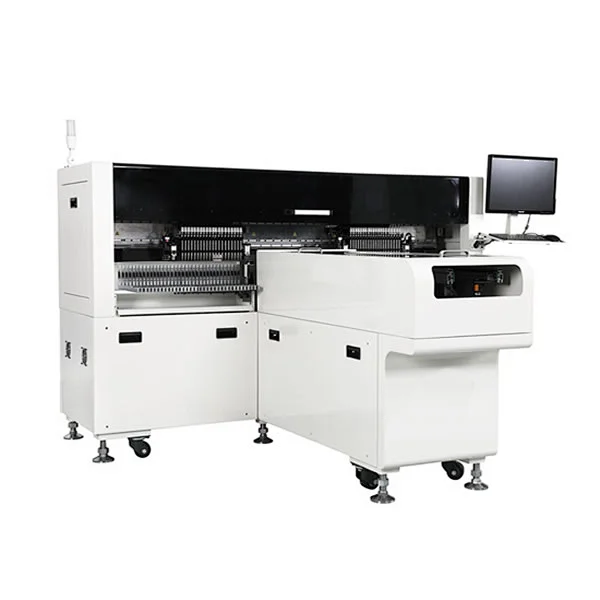

High Speed LED Mounter CM-S36

High Speed LED Mounter CM-S36

High Speed LED Mounter CM-S36 Features

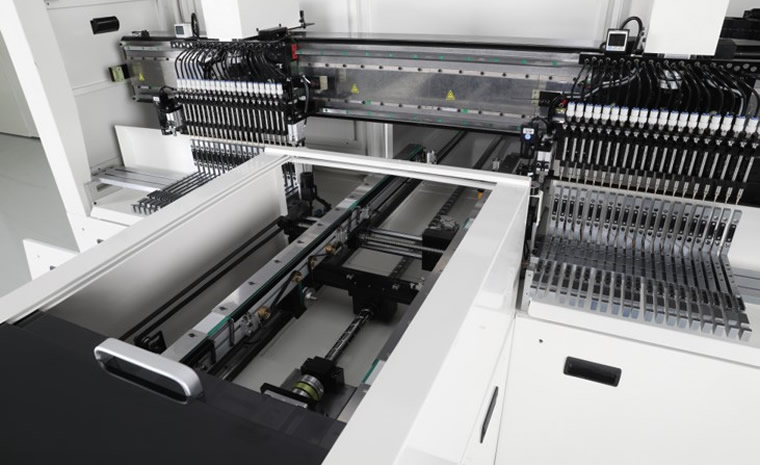

  Realizes Super-high Placement Speed of 170,000 CPH

  18 spindles * 2 grantry driven by linear motor , realizes the highest placement speed  of 170,000 CPH.

Realizes Super-high.jpg
  Suitable parts and boards:

●   Applicable to parts : LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206.

●   Applicable to Max. 1200(L) x 330(W) PCBs for long  boards applied to LEDs.

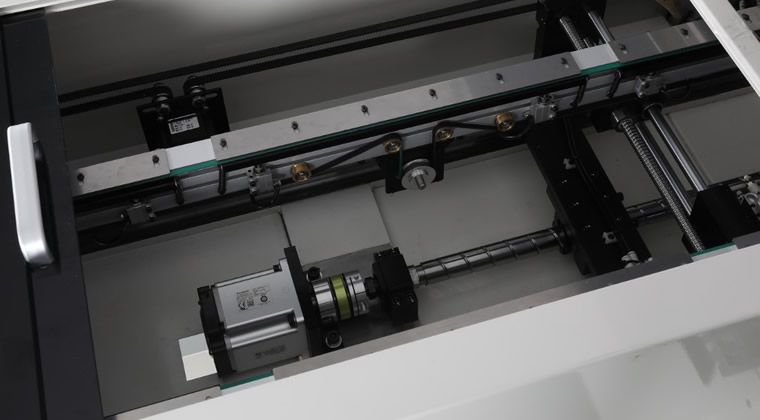

  Excellet high quality parts ensures long service life
Excellet high.jpg
  Excellent Components

  Ball Screws

  KURODA / THK / NSK (Japan)

  X/Y/Z linear guide rail

  HIWIN (Taiwan)

  Linear Guide

  PANASONIC (Japan) / MOONS (China)

  Servo Motors & Drivers

  PANASONIC

  Stepper Motors & Drivers

  MOONS (China)

  Cables & Tank Chain

  IGUS (Germany)

  Solenoid Value

  CKD (Japan) / MAC (America)

  Self-developed software simplifies production, easy operating and programming.


High Speed LED Mounter CM-S6 Specifications

  Machine model

  CM-S36

  Alignment

  4 camera for positioning PCB, 1 camera for nozzle calibration

  Number of Spindles

  2 head *18 spindles , total 36 spindles

  Driving method

   X with linear motor, Y with servo motor, Z with step motor

  Mounting speed

  Max 170,000 CPH for mounting LED2835

  Component range

  LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206.  Max component height : 8mm

  PCB

  Max 330(W)*1200(L)mm , thickness : 0.5 to 3.0mm

  Conveyor

  900+/-20mm

  Feeder station

  76 pcs *12mm feeder

  Power supply/air pressure

   1P , AC 220V /50HZ,  0.5~0.7Mpa

  Power

  2.6KW

  Machine weight

  1500KG

  Machine size

   2350(L)*2450(W)*1425(H)mm
