● Beatiful design, solid machine frame with high quality step motor with it's control system ensures machine run speedy and stably. |
|
|
● High quality screw driving and feeing system. HOIS screw driver and feeder is optional. |
|
|
● Full english operation interface, easy to use. |
|
|
● Customized fixture for different products. |

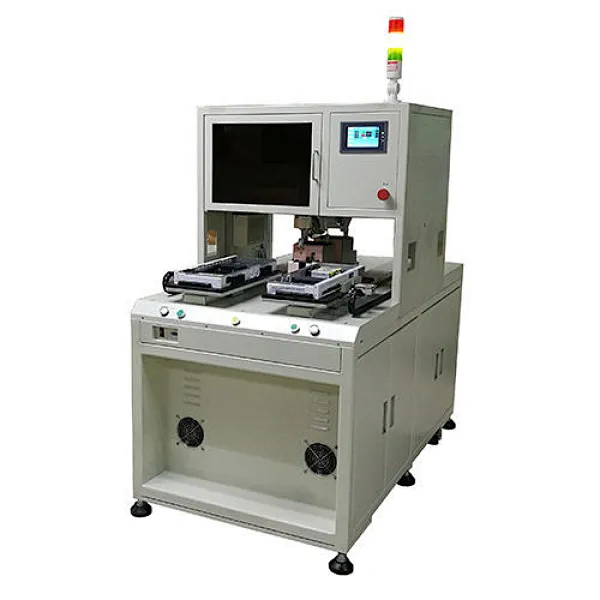

Automatic Screw Driving Machine ASD-L206
ASD-L206 Double X/Y/Z axis Step motor and driving system. Suited for one product which have 2 kinds of screws. High quality screw driving and feeing system. PLC and touchscreen control system. Screw locking range (X/Y/Z) :450/210/ 60mm * 2 work table.High accuracy: repeatability is controlled within ± 0.05mm.Screw driving speed: 1.0-2.2 seconds / PCS (depending on the length of the screw). Screw driving defective rate:≤3‰
|
Automatic Screw Driving Machine ASD-L206 Specification |
|
|
Model |
ASD-L206 |
|
Work table size(mm) |
450mm*210mm *2 work table |
|
Driving system |
Double X/Y/Z axis step motor control |
|
Control system |
PLC + touch screen |
|
Screw range |
M1-M5 |
|
Screw picking method |
vaccum picking |
|
Screw driving speed |
1.0- 2.2 seconds /pcs |
|
Positioning Repeatability |
±0.05mm |
|
Compressed air pressure requirement |
0.4-0.7Mpa |
|
Machine size(mm) |
W800mm*D1500mm*H1500mm |
|
Power Supply |
AC 220V 50 HZ |
|
Power |
300W |
