Automatic Screw Driving  Machine SY-S12T
Automatic Screw Driving  Machine SY-S12T
Automatic Screw Driving  Machine SY-S12T

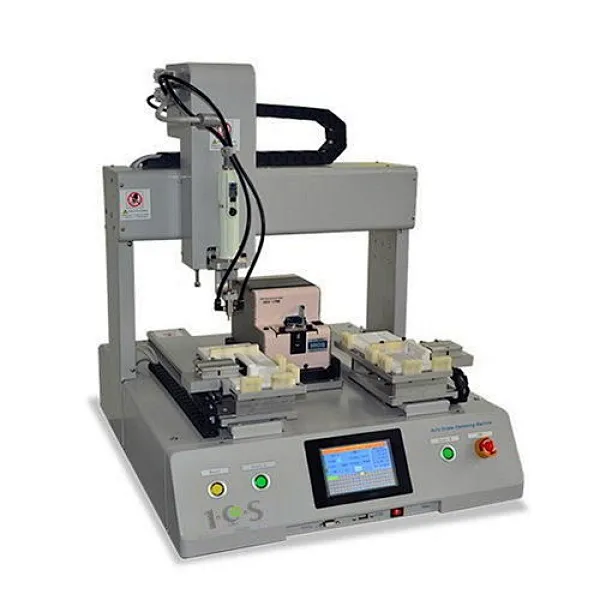

Automatic Screw Driving Machine SY-S12T

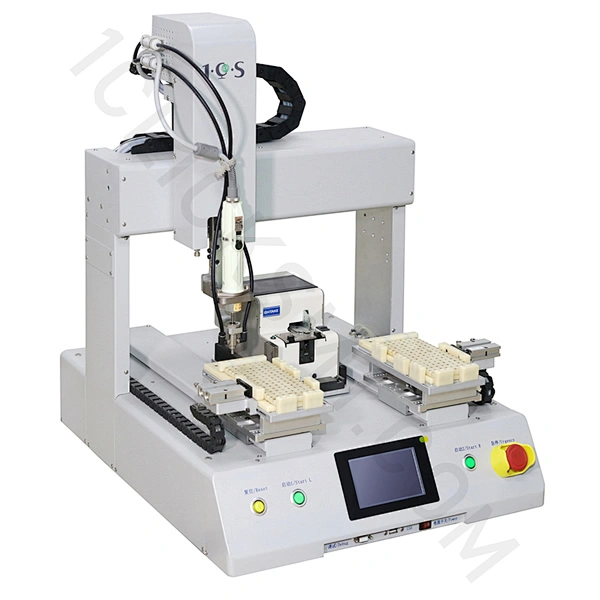

SY-S12 series machine is equipped with high quality Japan made HIOS screw driver and Quicher screw feeder, Double work station realize non- stop running , greatly improve production efficiency.

High quality  robot with step motor controlled by  PLC and touchscreen.

High quality robot with step motor controlled by PLC and touchscreen.

High quality Japan made HIOS high quality screw driver and screw feeder (optional)

High quality Japan made HIOS high quality screw driver and screw feeder (optional)

Double work station realize non- stop  , improve production efficiency

Double work station realize non- stop, improve production efficiency. Support placing products on the front side of machine and taking out on back side of machine.

Customized  fixture is available to variety of products.

Customized fixture is available to variety of products.

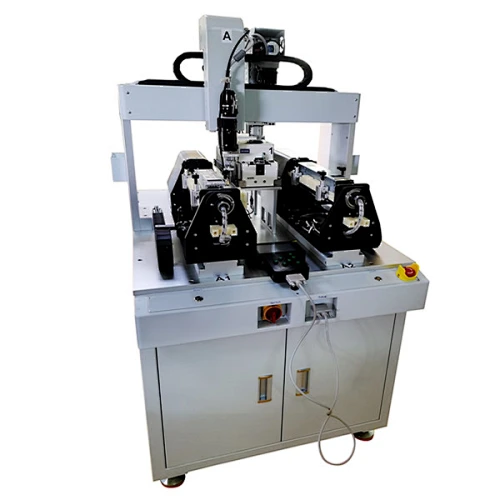

SY-S12T/L/M Series with optional A axis can automatically adjust screw driving height

SY-S12T/L/M Series with optional A axis can automatically adjust screw driving height, capable to drive screws on different plane height .

Automatic Screw Driving  Machine SY-S12 Series Description:

1.High quality 4 axis(X/Y1/Y2/Z) robot with step motor control ensures machine run stably .

2.PLC and touch screen control system with full english interface , easy to operate .

3.Equipped with high quality Japan made HIOS screw driver and screw feeder (optional).

4.Double work station realize non- stop  , improve production efficiency.

5.Customized  fixture is available to variety of products.

6. Support placing products on the front side of machine and taking out on back side of machine.

7. Screw missing detection and loose screw detection are standard configuration.

8. SY-S12T/L/M Series with optional A axis is able to drive screws on different plane height.

9. Screw floating height detecting function is optional to ensure each screw is driven to bottom and tightend.

Automatic Screw Driving Machine SY-S12 Series Specification:

Model

SY-S12T

SY-S12L SY-S12M

Screw driving head quantity

1

1 1

Work table quantity

2

2 2

Work table size(mm)

W120mm*D200mm*H60

W180mm*D250mm*H60 W250mm*D300mm*H60

Drive system

X/Y/Z axis step motor control

X/Y/Z axis step motor control X/Y/Z axis step motor control

Positioning Repeatability

±0.05mm

±0.05mm ±0.05mm

Screw picking method

vaccum picking

vaccum picking vaccum picking

Screw driving speed

max 1.5 pcs /sec

max 1.5 pcs /sec max 1.5 pcs /sec

Power

300W

300W 300W

Power Supply

1P, AC110V/220V, 50/60 HZ

1P, AC110V/220V, 50/60 HZ 1P, AC110V/220V, 50/60 HZ

Machine size(mm)

W550mm*D650mm*H650mm

W650mm*D650mm*H700mm W800mm*D650mm*H700mm

Weight

60 KG

70 KG 75 KG

air pressure requirement

0.4-0.7Mpa

0.4-0.7Mpa 0.4-0.7Mpa
Specification of screws for standard Quicher screw feeder One type of screw from M1.0 to M3.0(Others can be customized) One type of screw from M1.0 to M3.0(Others can be customized) One type of screw from M1.0 to M3.0(Others can be customized)
Applicable Screw Length(under head)

Up to 20mm

Up to 20mm Up to 20mm

Standard HIOS screw driver

Standard Torque is 1~5kgf.cm (0.1~0.5N.M) .Others can be customized Standard Torque is 1~5kgf.cm (0.1~0.5N.M) .Others can be customized Standard Torque is 1~5kgf.cm (0.1~0.5N.M) .Others can be customized

Automatic Screw Driving  Machine  SY-S12 Series configuration:

Standard configuration:

●   Automatic screw driving machine

●   4 aix step motor and driving system.

●   Quicher screw feeder (OHTAKE NSRI)*1set (One type of screw from M1.0 to M3.0,Others can be customized)

●   HIOS high quality screw driver   *1set (Standard is CL-2000 or CL-3000 or CL-4000 one set; Others can be customized)                .

●   1 year parts warranty                .

Optional configuration:

●   A axis for screws needed to be driven on different plane height

●   Screw floating height detection                                 .

●   Customized fixture
