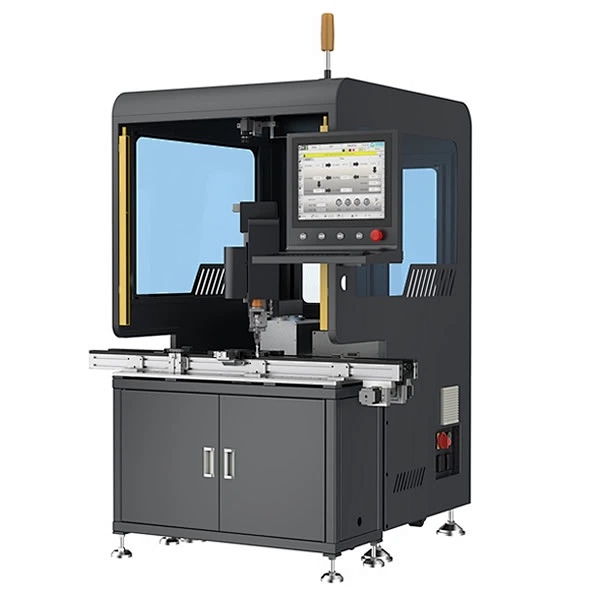

Embeded Screw Driving Machine ASD-600S

Embeded Screw Driving Machine ASD-600S

ASD-600S is an embeded screw driving system , it is equipped with 3 axis SCARA robot , servo screw driving system the intellight control system , which can be easily set beside the production line  help you realize full automatic screw driving and monitor screw tightening torque in real time.

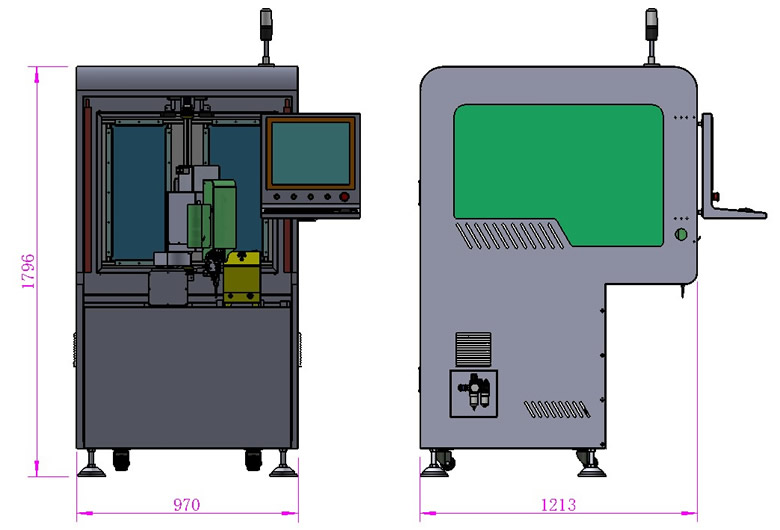

Dimension

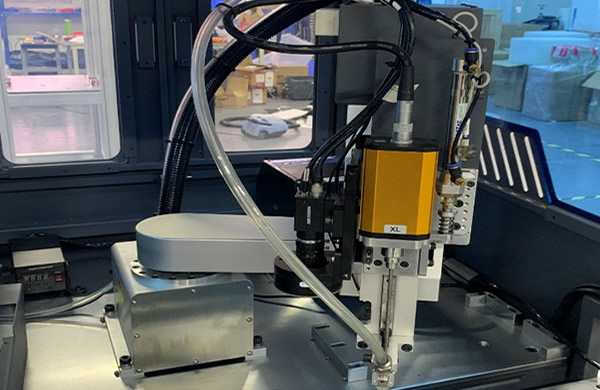

equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process.

●   equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process.

●   servo motor controlled screw driver, with intelligent software, which can accurately control and monitor screw tightnening torque.

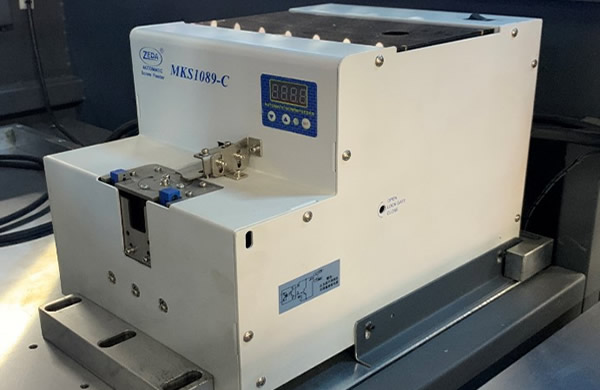

High quality suck type screw feeder, feed screws stably.

●   High quality suck type screw feeder, feed screws stably.

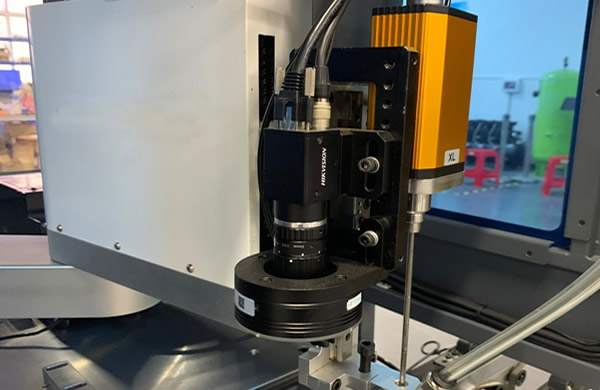

Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy.

●   Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy.

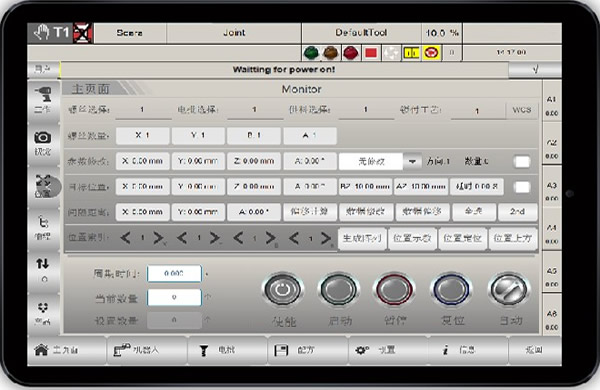

Windows based software, easy to operate.

●   Windows based software, easy to operate.

Embeded Screw Driving Machine ASD-600S Features:

●    ASD-600S adopt modular design  , can be easliy set beside production line help you realize full screw driving automation.

●   Standard equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process

●   ASD-600S  is equipped with servo motor controlled screw driver, with intelligent software, which can accurately control and monitor screw tightnening torque .

●   High quality screw feeding system ensure stable screw feeding .

●   Extraordinary vision system accurately position product , realize ±0.05mm screw driving accuracy .

●   Intelligent detection function, can detect abnormal conditions such as missing lock, loose, floating height, etc.

●   Windows based software, easy to operate.

ASD-600S Specifications

  Model

  ASD-600S

  Motion system

  3 axis Scara robot , reach : 600mm

  Screw driver

  servo motor screw driver * 1 set, monitor tightenging torque in real time.

  Screw feeder

  Suck type screw feeder * 1set

  Suitable screw size

  M1-M4, customized

  Repeat positioning accuracy

  ±0.05mm

  Z axis travel distance

  100mm

  Screw drving efficiency

  approx 2s/pcs

  Control system

  Windows OS  based Self developed control system

  Fault detection

  missing, loose, and floating  detection.

  Conveyor

  standard machine is not including conveyor , customized conveyor is avalible.

  Machine power

  Max 2.5KW

  Machine voltage

  AC 220V/50HZ, 1P

  Machine dimensions

  Approx 970*1213*1800mm(not including display and light tower )

Embeded Screw Driving Machine ASD-600S  includes:

Standard configuration:

●    Embeded Screw Driving Machine ASD-600S

●    servo screw driver *1pcs

●    suck type crew feeder *1pcs

●    1 year parts warranty
