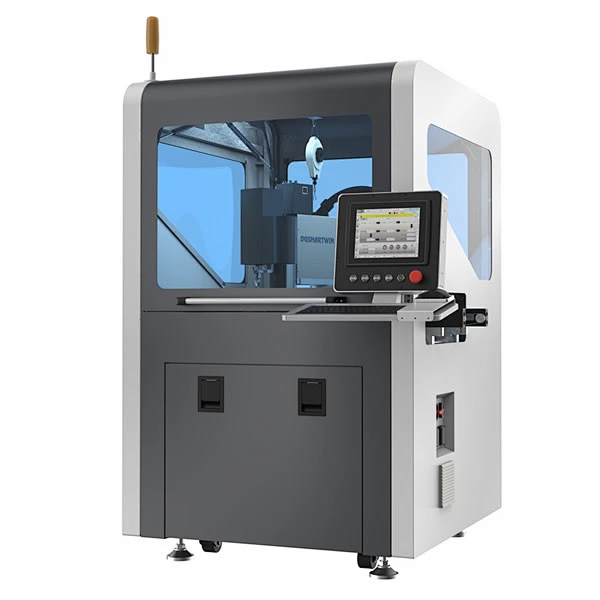

Inline Screw Driving Machine ASD-600i

Inline Screw Driving Machine ASD-600i

ASD-600i is an inline screw driving system, it is equipped with 3 axis SCARA robot , servo screw driving system the intellight control system which can help you realize full automatic screw driving and monitor screw tightening torque in real time.

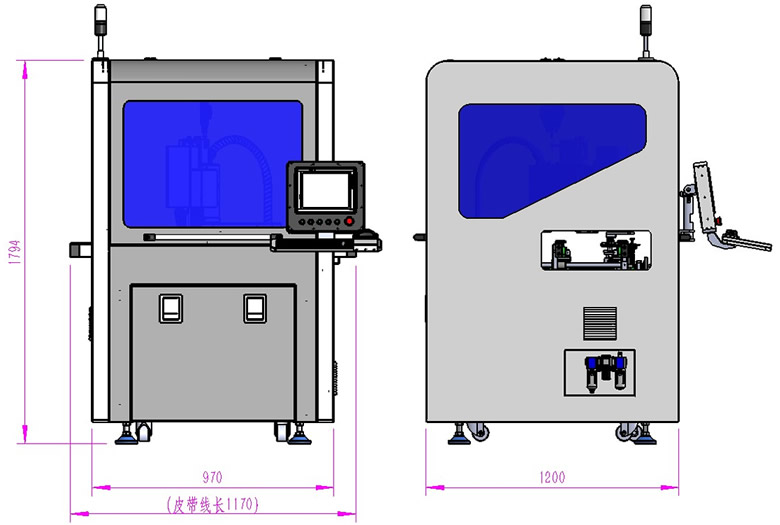

Dimension

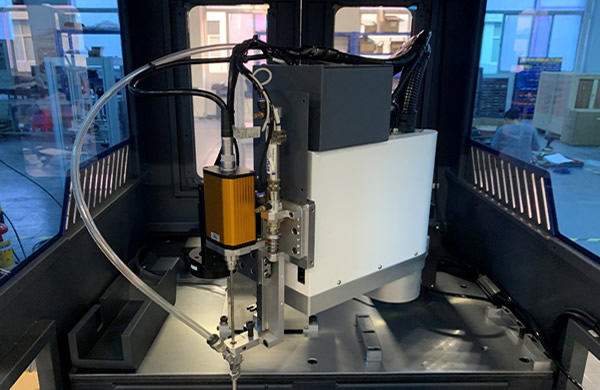

equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process.

●   equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process.

●   servo motor controlled screw driver, with intelligent software, which can accurately control and monitor screw tightnening torque.

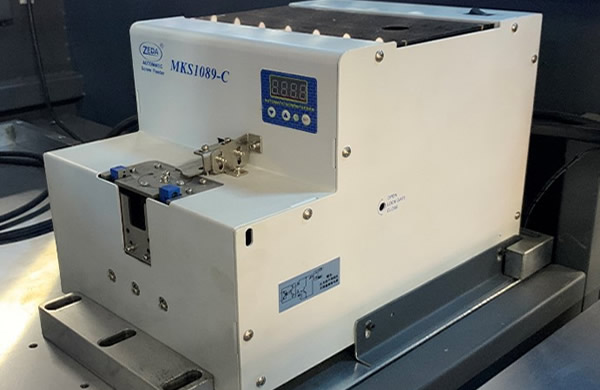

High quality suck type screw feeder, feed screws stably.

●   High quality suck type screw feeder, feed screws stably.

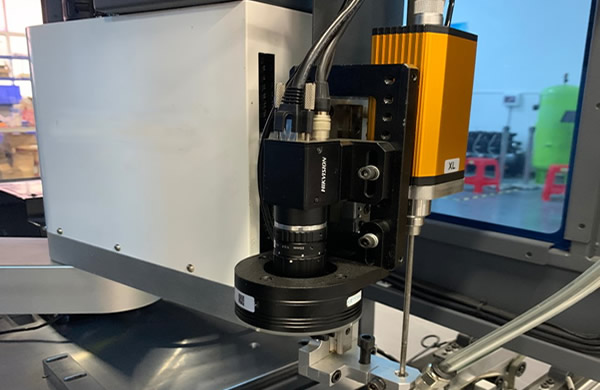

Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy.

●   Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy.

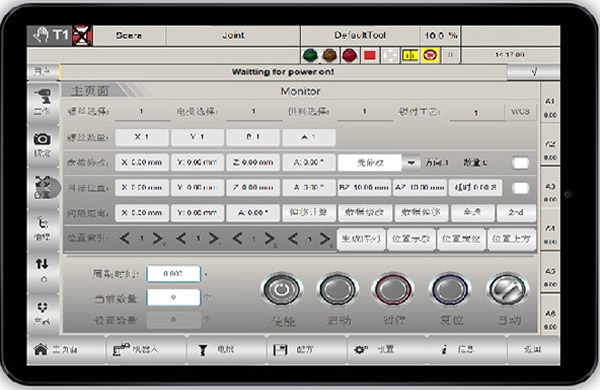

Windows based software , easy to operate.

●   Windows based software , easy to operate.

Inline Screw Driving Machine ASD-600i Features:

●    ASD-600i adopt modular design, can be easliy intergrated into production line help you realize full screw driving automation.

●   Standard equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process.

●    ASD-600i is equipped with servo motor controlled screw driver, with intelligent software, which can accurately control and monitor screw tightnening torque.

●   High quality screw feeding system ensure stable screw feeding.

●    Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy.

●    Intelligent detection function, can detect abnormal conditions such as missing lock, loose, floating height, etc.

●    Windows based software, easy to operate.

ASD-600i Specifications

  Model

  ASD-600i

  Motion system

  3 axis Scara robot, reach : 600mm

  Screw driver

  servo motor screw driver * 1 set, monitor tightenging torque in real time.

  Screw feeder

  Suck type screw feeder * 1set

  Suitable screw size

  M1-M4, customized

  Repeat positioning accuracy

  ±0.05mm

  Z axis travel distance

  100mm

  Screw drving efficiency

  approx 2s/pcs

  Control system

  Windows OS  based Self developed control system

  Fault detection

  missing, loose, and floating  detection.

  Conveying system

  Conveying height : 920±30mm, left to right.

  Machine power

  Max 2.5KW

  Machine voltage

  AC 220V/50HZ, 1P

  Machine dimensions

  Approx 1170*1200*1800mm (not including display and light tower )

Inline Screw Driving Machine ASD-600i  includes:

Standard configuration:

●    Inline Screw Driving Machine ASD-600i

●    servo screw driver *1pcs

●    suck type crew feeder *1pcs

●    1 year parts warranty PLC controller
