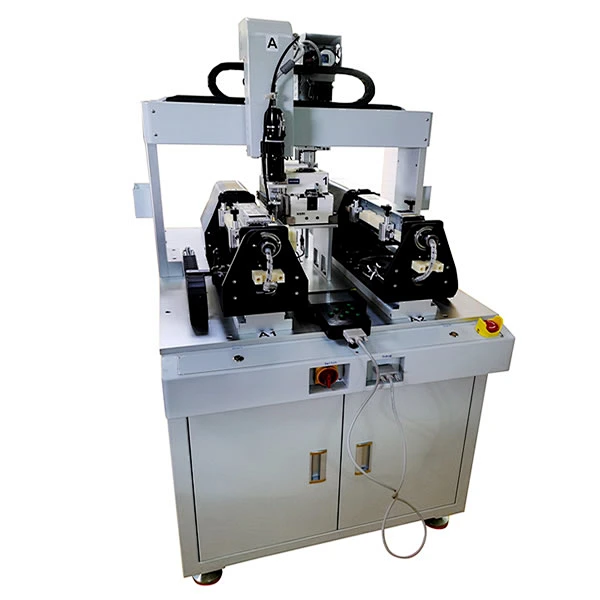

Automatic Screw Driving Machine SY-S24S

Automatic Screw Driving Machine SY-S24S

SY-S24S combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2 different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production. The double rotating platform can rotate 360 degrees, and the product can be locked with screws from 0-360 degrees. For a product that needs to be locked with multi-sided screws, the efficiency is very high. One machine is 3-4 times more efficient than multiple standard machines with single-sided screw locking.

High quality robot with step motor controlled by PLC and touchscreen.

●   High quality robot with step motor controlled by PLC and touchscreen. SY-S24S combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2 different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production.

High quality Japan made HIOS high quality screw driver and Quicher  screw feeder.

●   High quality Japan made HIOS high quality screw driver and Quicher  screw feeder.

The machine equipped with double rotating platform can rotate 360 degrees, and the product can be locked with screws from 0-360 degrees.

●   The machine equipped with double rotating platform can rotate 360 degrees, and the product can be locked with screws from 0-360 degrees. For a product that needs to be locked with multi-sided screws, the efficiency is very high. One machine is 3-4 times more efficient than multiple standard machines with single-sided screw locking.


●   2 pcs (R1/R2) 360-degree rotating platforms controlled by panasonic servo driver and servo motor ensure machine run stably.

Customized  fixture is available to variety of products.

●   Customized  fixture is available to variety of products.

Customized Automatic Screw Driving  Machine SY-S24S Features:

●   SY-S24S combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production.  The double rotating platform can rotate 360 degrees, and the product can be locked with screws from 0-360 degrees. For a product that needs to be locked with multi-sided screws, the efficiency is very high. One machine is 3-4 times more efficient than multiple standard machines with single-sided screw locking.

●   High quality 6 axis(X1/X2/Y1/Y2/Z1/Z2) step motor control +2 pcs (R1/R2) 360-degree rotating platforms controlled by servo motor and servo drive ensure machine run stably.

●   PLC and touch screen control system with full english interface, easy to operate.

●   Equipped with high quality Japan made HIOS screw driver and  Quicher  screw feeder.

●   Customized  fixture is available to variety of products.

●   Support placing products on the front side of machine and taking out on back side of machine.

●   Screw missing detection and loose screw detection are standard configuration.

●   Screw floating height detecting function is optional to ensure each screw is driven to bottom and tightend.

Automatic Screw Driving Machine SY-S24S Specification:

  Model

  SY-S24S

  Screw driving head quantity

  2

  Work table quantity

  2

  Work table size(mm)

  W255mm*D685mm*H85

  Drive system

  X1/X2/Y1/Y2/Z1/Z2 axis step motor control+2 pcs 360-degree rotating platforms (controlled by servo motor and servo drive)

  Positioning Repeatability

  X/Y/Z:±0.05mm R:±0.1 degrees

  Screw picking method

  vaccum picking

  Screw drving efficiency

  max 1.5 pcs /sec

  Power

  Max :1.8KW

  Power Supply

  1P, AC110V/220V, 50/60 HZ

  Machine size(mm)

  W900mm*D1200mm*H1550mm

  Weight

  245KG

  Specification of screws for one pcs standard Quicher  screw feeder

  One type of screw from M1.0 to M3.0(Others can be customized)

  Applicable Screw Length(under head)

  Up to 20mm

  Standard HIOS screw driver

  Standard Torque is 1~5kgf.cm (0.1~0.5N.M) .Others can be customized

Customized Automatic Screw Driving  Machine  SY-S24S Series configuration:

Standard configuration:

●    Automatic screw driving machine SY-S24S

●    6 aix step motor and driving system+ 2pcs servo controlled R axis

●   Quicher  screw feeder*2set(One type of screw from M1.0 to M3.0,Others can be customized)

●   HIOS screw driver *2set (Standard is CL-2000 or CL-3000 or CL-4000 two sets;Others can be customized)

●    1 year parts warranty

Optional configuration:

●   A axis for screws needed to be driven on different plane height.

●    Screw floating height detecting system to ensures each screw is driven to bottom and tightened.

●   Customized fixture
