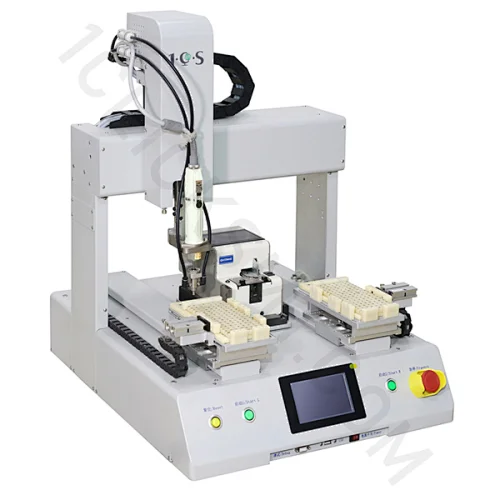

Automatic Screw Driving Machine SY-S22T

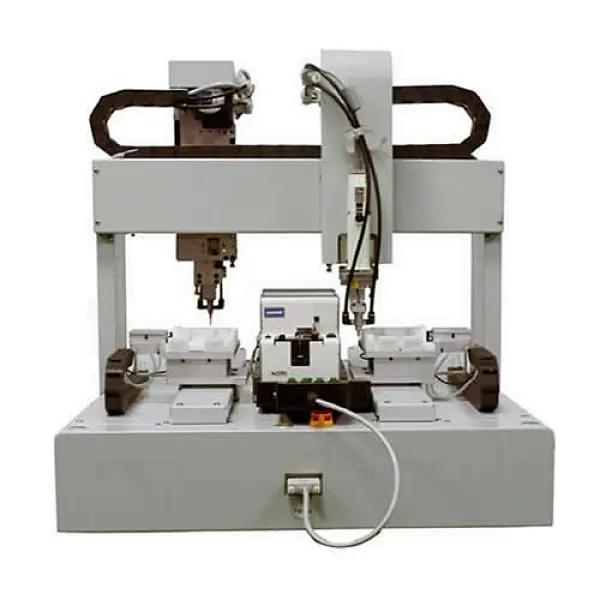

SY-S22T combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2 different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production.


High quality robot with step motor controlled by PLC and touchscreen. SY-S22T combined 2 screw driving heads and 2 work station in one machine , capable to fasten 2 different screws with 2 kinds of toque requirement , also can be used as 2 machines with single head and single work station large volume production.

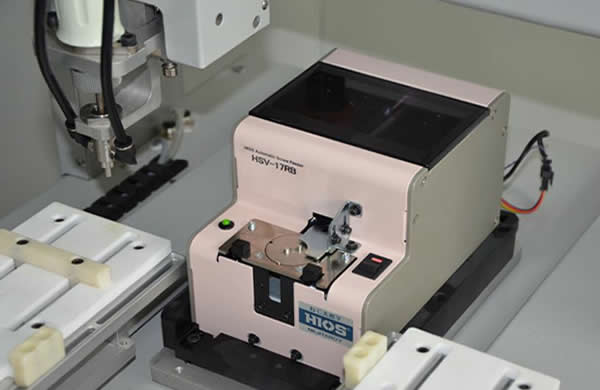

High quality Japan made HIOS high quality screw driver and screw feeder (optional).


Customized fixture is available to variety of products.

Automatic Screw Driving Machine SY-S22T Specification:

Model

SY-S12T

SY-S22T

Screw driving head quantity

1

2

Work table quantity

2

2

Work table size(mm)

W120mm*D200mm*H60

W180mm*D500mm*H60

Drive system

X/Y/Z axis step motor control

X/Y/Z axis step motor control

Positioning Repeatability

±0.05mm

±0.05mm

Screw picking method

vaccum picking

vaccum picking

Screw driving speed

max 1.5 pcs /sec

max 1.5 pcs /sec

Power

300W

400W

Power Supply

1P, AC110V/220V, 50/60 HZ

1P, AC110V/220V, 50/60 HZ

Machine size(mm)

W550mm*D650mm*H650mm

W650mm*D930mm*H700mm

Weight

60 KG

100 KG

air pressure requirement

0.4-0.7Mpa

0.4-0.7Mpa

Specification of screws for standard Quicher screw feeder

One type of screw from M1.0 to M3.0(Others can be customized)

One type of screw from M1.0 to M3.0(Others can be customized)

Applicable Screw Length(under head)

Up to 20mm

Up to 20mm

Standard HIOS screw driver

Standard Torque is 1~5kgf.cm (0.1~0.5N.M) .Others can be customized Standard Torque is 1~5kgf.cm (0.1~0.5N.M) .Others can be customized
