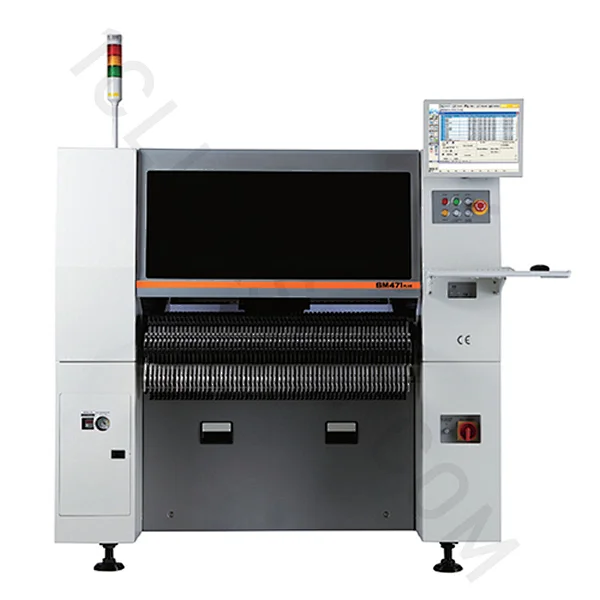

Fast chip shooter SM471 PLUS

The SM471PLUS is a high performance chip shooer which applies two gantries equipped with 10 spindles per head as well as a new flying vision system.Compared to the existing SM471 model, its placement speed is increased further to 78,000CPH, which is the highest in the world among chip shooters of the same class. In addition, it is basically applicable to components from 0402(01005inch) chips to maximum □14mm IC components. Its actual productivity and placement quality is improved by applying high-speed and high precision electrical feeders. With two gantries and dual lane, the SM471PLUS supports various production modes to maximize the productivity of SM series machines.

Dual lane and shuttle conveyor maximizes the productivity of SM series component placers

Dual lane production maximizes the productivity of small boards and the shuttle conveyor

ensures extensibility to the production of large boards.

Supports for various production modes according to production chaaracteristics

Even when a problem occurs to one placeent head or when the components, allowing

continuous production without stopping the machine.

Panorama View Function

Since large-sized components are not viewed in one screen, it is hard to adjust their pickup

or placement positions. In order to remove such inconvenience, the panorama view function is

added to allow large components to be viewedwithin the FOV of a camera.

Component Monitoring before/after Plancement

Checks for nozzle contamination during production to prevent non-insertion and dumping

of a large number of components in advance, ensuring high quality production.

Time of inspection-Before/after ANC; before/after component placement;and after

component dumping

Multi-Vendor Component Management Function

When the same components are supplied from different component supply devices, this function

allows components to be use without changing a PCB file and downloading a new PCB file.

On-the-fly Placement Method

Owing to techwin's own On-the-fly image recognition technology which allows component

recognition without stopping while moving after component pickup , placement speed is

maximized by minimizing the moving time between the pickup position and placement

position and reducing the recognition time to zero.

Added a new function maximizing the operational convenience of customers.

Easy Component Registration New Part Editor

A Drag & Drop component registration system, allowing registration of component informatic recognition

and rotation by simply clicking the mouse. (When applying Elite2) In addition, user convenience is further

reinforced by unifying the on-line/off-line comvenience is further reinforced by unifying the on-line/off-line

component registration systems.

Mixed Use of Electric Feeder and Pneumatic Feeder

Mixed use of electric and pneumatic feeders in the same feeder base is available for SM series

component placers. The investment in production can be minimized by using these feeders

along with existing feeders.

The highest applicability to long and large PCBs among machines of the same class

SM471 PLUS Features:
1	Placement Speed	Chip 78,000CPH(Optimal)
2	Applicable Component	0402（01005inch)~ Max. □14（h12mm)
3	Placement Accuracy	±40μm@±3σ/Chip
		±50μm@±3σ/QFP
4	Applicable PCB	L510×W460×1Lane (Standard)
		L610×W460(Option)

SM471 PLUS Specification：
Model			SM471 PLUS
Alignment			Flying Viion
Number of Spindles			10 Spindes × 2 Gantry
Placement Speed			78,000 CH (Optimum)
Placement Accuracy	Chip		±50μm@μ±3σ
	QFP		±25μm@μ±3σ
Component Range	Flying Vision		0402（01005）~ □14mm IC, Connector (Lead Pitch 0.4mm) BGA,CSP (Ball Pitch 0.4mm）
			NA
	Stage Vision		NA
			NA
	Max.Height		12mm
	Min.		50(L)×40（W)
	Max.	Single Lane	510(L×460（W）/ 610(L)×460（W）Option
		Dual Lane	460(L)×250（W）/ 610(L×250（W）Option
	PCB Thickness		0.38~4.2
Feeder Capacity (8mm standard）			120ea/112ea(Dacking Cart)
Utility	Power		AC200/208/220/240/380/415V(50/60Hz, 3Phase)
			Max.5.0kVA
	Air Consumption		0.5~0.7MPa(5.0~7.0kgf/cm²）
			350Ne/min
			50Ne/min (vacuum pump）
Mass(kg)			Approx.1820
External Dimension (mm）			1650(L）×1690(D)×1485(H）
