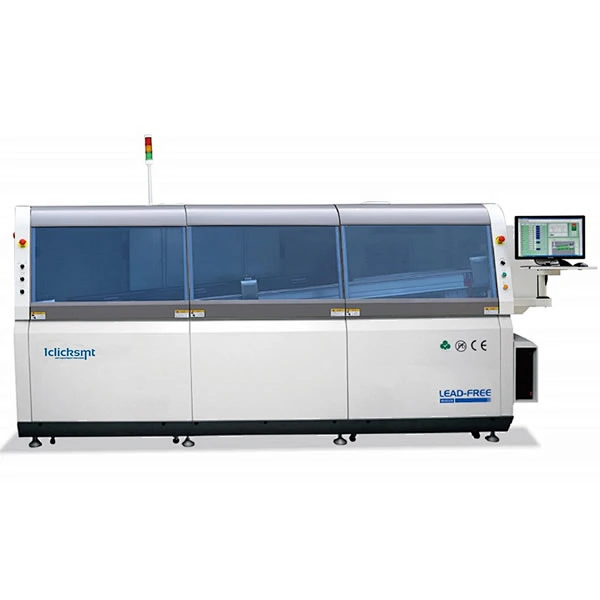

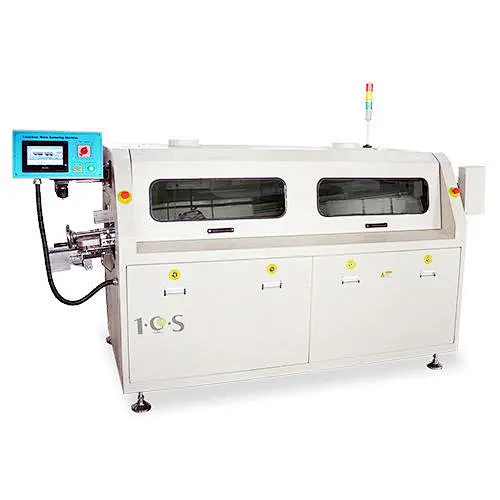

Power Wave Series Lead Free Wave Soldering Machine

Power Wave Series Lead Free Wave Soldering Machine

Conveyor system adopts the stepless electronic speed governing and closed loop control system which allows a stable and accurate performance.

●   Conveyor system adopts the stepless electronic speed governing and closed loop control system which allows a stable and accurate performance.

●   The inlet conveyor was equipped with a special pressure-device which is to prevent the PCB entrance slip.

●   Used the double buckle chain to improve the bearing ability and loading stable and allows 50kg full loading stable and allows 50kg full loading.

●   Equipped with the "L" or "V type of Ti finger in a staggered way to make the conveyor adapt the heavy PCB and light PCB.

Spray Nozzle driving by stepper motor will be Guided speeding and frequency according to the PCB width.

●   Spray Nozzle driving by stepper motor will be Guided speeding and frequency according to the PCB width.

●   The nozzle is right angle according to rail always to ensure the flux can good penetrate the PCB through holes.

Modularization High efficiency pre-heater is convenience for maintenance. attained powerful heat and long life.

●   Modularization High efficiency pre-heater is convenience for maintenance. attained powerful heat and long life.

The adjustable Micro-Wind Circulation Design.

●   The adjustable Micro-Wind Circulation Design.

●   With independent temperature control in 3 Pre-heating Zones that can ensure to achieved the best heat-efficiency.

●   Hot air and IR are available for arbitrary collocation.

Standard Durable  cast iron solder pot for lead-free Production.

●   Standard Durable  cast iron solder pot for lead-free Production.

●   Titanium solder pot is optional.

●   High power Mechanical pump to ensure stable wave.

Solder Pot in/out and up/down driven by motorized system with security device to avoid any damage cause of incorrect operating.

●   Solder Pot in/out and up/down driven by motorized system with security device to avoid any damage cause of incorrect operating.

Compelling Cooling System to attain the great cold-down slope as per lead-free required;

●   Compelling Cooling System to attain the great cold-down slope as per lead-free required;

●   Conveyor angle can easily be adjusted by manual.

Win 10 OS with Intellectronics Design, English Language on-screen is most convenience for operating.

●   Win 10 OS with Intellectronics Design, English Language on-screen is most convenience for operating.

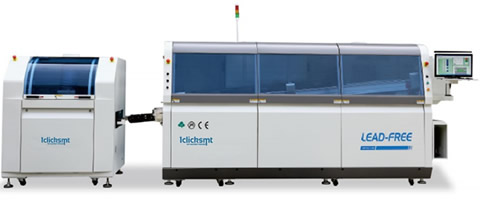

Optional  external sprayer scheme can be adopted, which is fireproof, safe and easy to maintain.

●   Optional  external sprayer scheme can be adopted, which is fireproof, safe and easy to maintain.

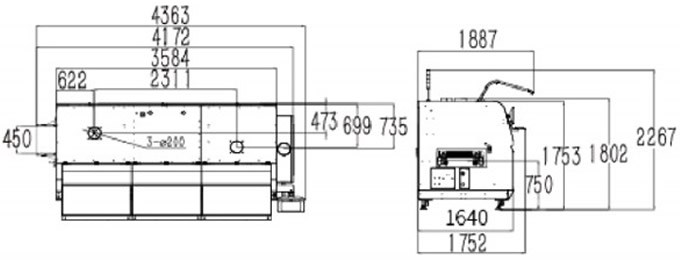

Machine dimension

 Power Wave Lead Free Wave Soldering Machine Specification :

  Model

  PowerWave-180/35

  PowerWave-180/45

  Dimension

  L4160*W1550*H1760mm

  PCB Conveyor Direction

  L-R(OptionR-L)

  Power Supply

  3P, 380VAC5O/6OHZ

  Power Required

  80KW

  Air Sources Required

  0.3-0.6MPa

  Starting Power

  36KW

  Normal Working Power

  7.3-10KW

  Control Mode

  PC + PLC

  Preheating Model

  Standard: Hot air, Option: IR

  Adjust Mode on Preheat Blower

  By Variable Frequency Regulating

  No. of Preheat Zone

   3

  Length of Preheat Zone

   1800 mm

  Preheat Temperature

   Room Temperature--280℃

  Preheat Temperature Control

  PID + SSR mode

  Wave Moving Mode

  Motor Drive

  Solder Pot Heater Power

  1.2KW* 12

  Solder Pot Capacity

  Standard : 520 KG with Cast Iron Solder pot, Option: 550KG with Titanium Solder pot

  Solder Pot Max. Temperature

   MAX:300℃

  Solder Usual Temperature

  MAX:280℃

  Solder Pot Temperature Control Mode

  PID + SSR mode

  Wave Drive Power

  l/2HPx2 3P220V

  Wave Height Adjustment

  By Variable Frequency Regulating

  Wave width

  350mm

  450mm

  Solder Pot Warmup Time

   Approx. 150min( Setting 250*C )

  PCB Conveyor Speed

  300-1800mm/Min

  PCB Width Range

  50-350mm

  50-450mm

  Component Height

  TOP:120mm/ Bottom:25mm

  Inlet Conveyor Height

  750±20mm

  Conveyor Rail Angle

  standard 4-7 degree Adjustable

  Conveyor Motor Power

   90W, 3P220v, AC

  Conveyor Motor Speed Adjustment

  By Variable Frequency Regulating

  FLUX Auto Refill

  Standard

  FLUX Flow

  10-100ml

  Spray Air Pressure

  0.25-0.4MPa

  Extraction Fan

  380V AC 375W

  Extraction Pipe Diameter

   Diameter :200mm

  Forced Air Fan

  380V AC 375W

  Air Cooler

  Option

  Exhaust volume

  15m3/min

Power Wave Lead Free Wave Soldering Machine Options:

● Titanium alloy solder pot

● Top forced convection preheating zone

● Top IR preheating zone

● Reserved Nitrogen pipe with Oxegen analyser

● Automatic width adjustment

● Central support

● Automatic solder adding device
