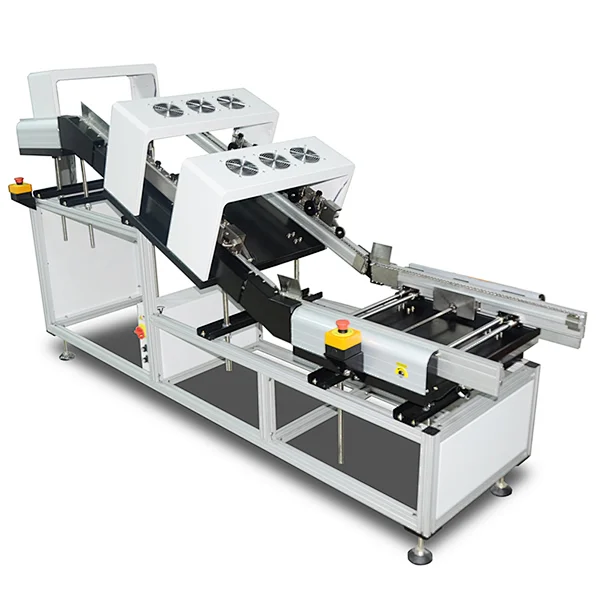

Solder Outfeed Conveyor

Solder Outfeed Conveyor

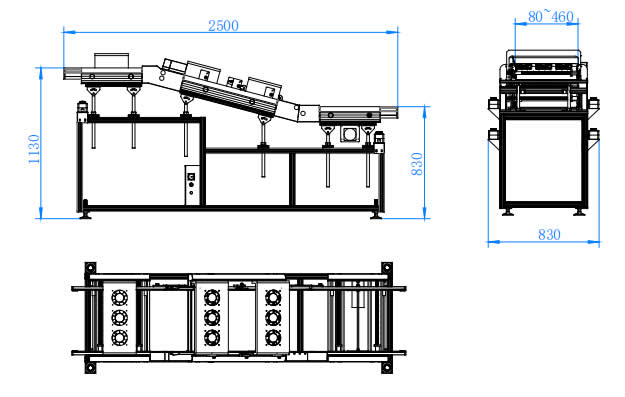

Solder Outfeed Conveyor Dimension

Solder Outfeed Conveyor Specification :



  Machine Dimension (L x W x H)

  2500 x 830 x 1300



  PCB Length

  Max 460mm

  PCB Width

  Max 460mm

Wave Solder Inloading Conveyor Features :

●    Conveyor width adjustment using hand crank.

●    Free running concept, no flow control.

●    Flux protected by using 3 mm pinchain.

●    Sliding resistors on decline section.

●    CE certified.


●    Pinchian using 5mm pins.

●    Cool fans.

●    Cylinder stoper.

●    Electrical conveyor width adjustment.

●    Other options available on request.

Solder Outfeed Conveyor Specification :



  Transport height:

  Specify uopon order

  Transfer direction:

  Left to right

  Operation side:

  Front of the machine

  Fixed rail:

  Front of the machine



  Conveyer concept:

  Metal Pinchain

  Belt speed:

  0.5-3m/min adjustable

  PCB edge support:


  Power supply:

  230 VAC/50 Hz/1 Ph

  Power consumption:

  200 VA max

  Component Clearance:

  Top 30mm, bottom 60mm
