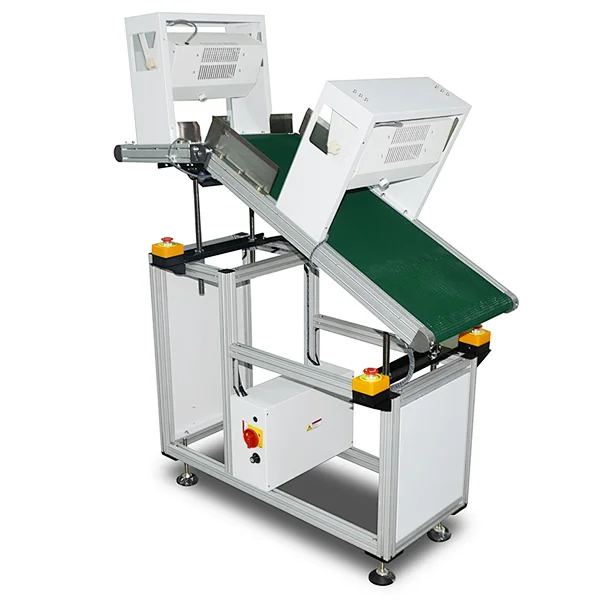

Wave Solder Unloading Conveyor

Wave Solder Unloading Conveyor

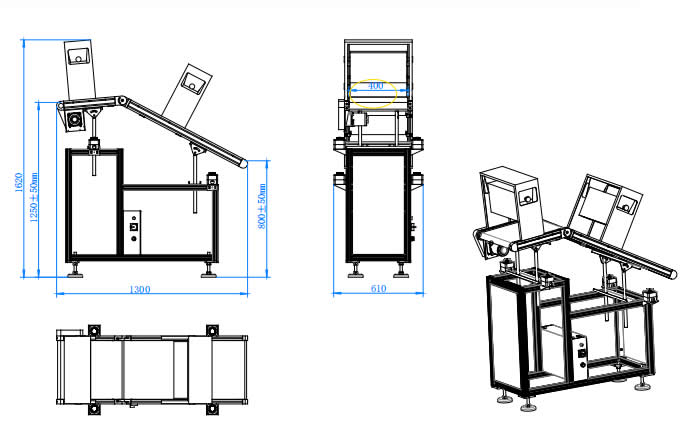

Wave Solder Inloading Conveyor Dimension
Description

Wave Solder Unloading Conveyor Specification :

  Model

  MWN-1300

  Machine Dimension (L x W x H)

  1300 x 485 x 1300

  Weight

  85kg

  PCB Width

  Max 400mm

Wave Solder Unloading Conveyor Features :

●    Aluminum conveying guide rail.

●    400mm belt.

●    Adjustable speed.

●    Adjustable angle.

●    Equipped with 2 groups of cooling fan.

OPTIONS:

●    Ionizer aire blower instead of cooling fans.

●    Mesh Belt instead of ESD Belt.

Wave Solder Unloading Conveyor Specification :

  Model

  MWN-1300

  Transport height:

  1150±50mm

  Transfer direction:

  Left to right

  Fixed rail:

  Front of the machine

  Interface:

  None

  Conveyer concept:

  ESD belt

  Belt speed:

  0-2m/min adjustable

  PCB edge support:

  5mm

  Power supply:

  220 VAC/50 Hz/1 Ph

  Power consumption:

  200VA max
