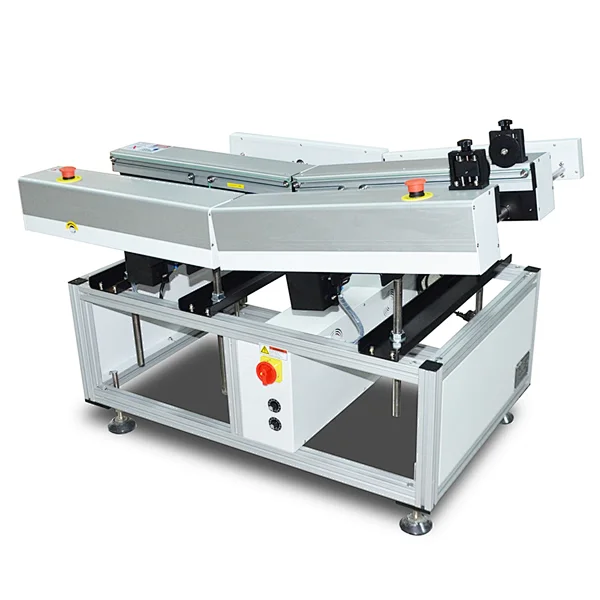

Wave Solder Inloading Conveyor

Wave Solder Inloading Conveyor

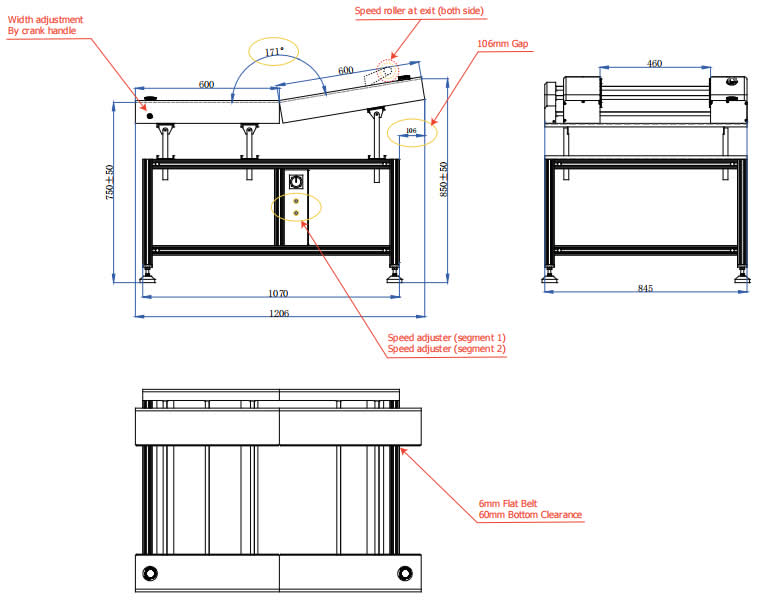

Wave Solder Inloading Conveyor Dimension
Description

Wave Solder Inloading Conveyor Specification :

  Model

  MWN-800

  Machine Dimension (L x W x H)

  1300 x 845 x 850

  Weight

  80kg

  PCB Width

  50mm - 460mm

  Conveying height

  850±50mm

Wave Solder Inloading Conveyor Features :

●    800mm Aluminum conveying guide rail.

●    Flet belt (3 mm edge).

●    Conveying motor with speed controller.

●    Smooth and parallel width adjustment.(lead screw).

Wave Solder Inloading Conveyor Specification :

  Model

  MWN-800

  Transport height:

  850mm ±50mm

  Transfer direction:

  Left to right

  Operation side:

  Front of the machine

  Fixed rail:

  Front of the machine

  Interface:

  SMEMA

  Conveyer concept:

  Pin chain

  Belt speed:

  0-2m/min adjustable

  PCB edge support:

  5mm

  Power supply:

  230 VAC/50 Hz/1 Ph

  Power consumption:

  150VA max. or specify
