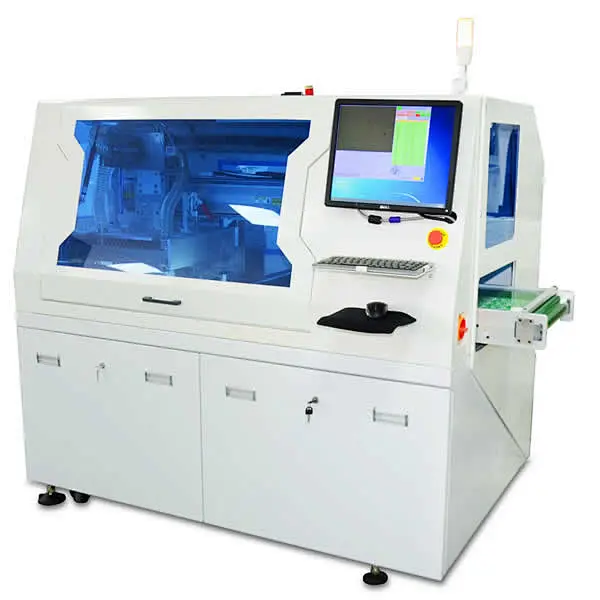

AR-2530M PCB Saparator adopt servo driving system and high quality routing spindle which can ensure<0.05mm routing accuracy , x,y,z moving speed can reach 500mm/s , routing speed can reach 50mm/s. and machine is equipped high resolution CCD which can automatically position fiducail mark and correct coordinate offset .windows operation system and self developed software make programming very easy.Fully automatic online router machine, the machine automatically load the PCB by customized vacuum fixture on the clamper and cut it, automatically unload finished product, and collects the edge of the board at the same time.Fully automatic online router machine can be docked with SMT production line to realize fully automatic operation process.

Bottom cutting system.

● Bottom cutting system.The utility model relates to an anstistatic brush type bottom dust collecting device.which has perfect dust collecting effect.

Equipped with High resolution CCD makes  programming very easy.

● Equipped with High resolution CCD makes programming very easy. It has mark positioning function ,can automatically correct the coordinate offset.Also the CCD has the function of scanning bar code and QR code, which can scan the bar code and QR code information on the PCB board directly, and then call the finished program on the machine to cut the PCB board directly. Option MES system,Through the CCD on the router and MES system software for the router ,the machine can be docked with the factory's MES system.it will be convenient for program call and data download, production log upload.

Top PCB clamper with customized vacuum fixture ,bottom cutting system.

● Top PCB clamper with customized vacuum fixture ,bottom cutting system.

●   After cutting the PCB board, the Router automatically throws away the waste board to the waste collection box.To provide a clean working environment.

● After cutting the PCB board, the Router automatically throws away the waste board to the waste collection box.To provide a clean working environment.

Automatic PCB unload conveyor belt.

● Automatic PCB unload conveyor belt.

On the bottom of unload conveyor belt.It Include a sensor that can check the PCB out.

● On the bottom of unload conveyor belt.It Include a sensor that can check the PCB out.

All the X/Y/Z cutting system is equipped Japanese  panasonic servo motor and it's control system.

● All the X/Y/Z cutting system is equipped Japanese panasonic servo motor and it's control system.

Superb Vision system with fiducial mark recognition function.

● Superb Vision system with fiducial mark recognition function.

● Camera teaching for programming.

● The software based on windows 7 opertion system .

The machine is equipped with the broken milling cutter detection function on the spindle. When the milling cutter is broken, the machine will stop, and the software interface will alarm.

● The machine is equipped with the broken milling cutter detection function on the spindle. When the milling cutter is broken, the machine will stop, and the software interface will alarm.

High quality ,air cooling long service life routing spindle .The machine is equipped with an ion air gun.

● High quality ,air cooling long service life routing spindle .The machine is equipped with an ion air gun. The ion wind blown from the bottom of the spindle can eliminate the static electricity generated during the cutting process.

Inline Automatic PCB Router AR-2530M Specification:

Model

AR-2530M

PCB Size(Max.)

400*400mm

PCB Size(Min.)

60*60mm

PCB Thickness

0.4-2.0mm(hard board)

PCB Material

FR4, glass fiber. Al

Conveying height

900±50mm

Conveying direction

Left to right

PCB loading method

1-section conveyor belt ,automatic loading board

PCB unloading method

conveyor belt on the router

PCB clamping system

Customized vacuum fixture suck the PCB form the inlet conveyor belt

Milling cutter broken detect

Yes

Cutting Speed(Max)

50mm/s

Control method

line, circle, arc, interpolate algorithm

Repeat Accuracy

±0.05(mm)

Cutting Accuracy

±0.05(mm)

Drive system

AC servo motor

Routing Spindle

42000rpm/min,air cooling

Milling Cutter

∅0.8,-∅3.0

Programming method

Camera Teaching

Router total power supply

3 phase AC 380V 50HZ/ 5.9 KW

Router size

L1810mm×W1250mm×H1690mm( including light tower)

Router Weight

Approx 700 KG

External vacuum cleaner power

3 phase AC 380V 50HZ/ 2.2 KW
