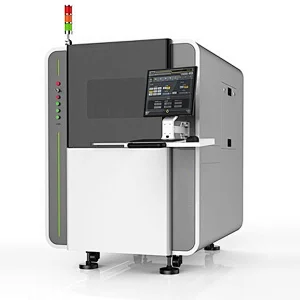

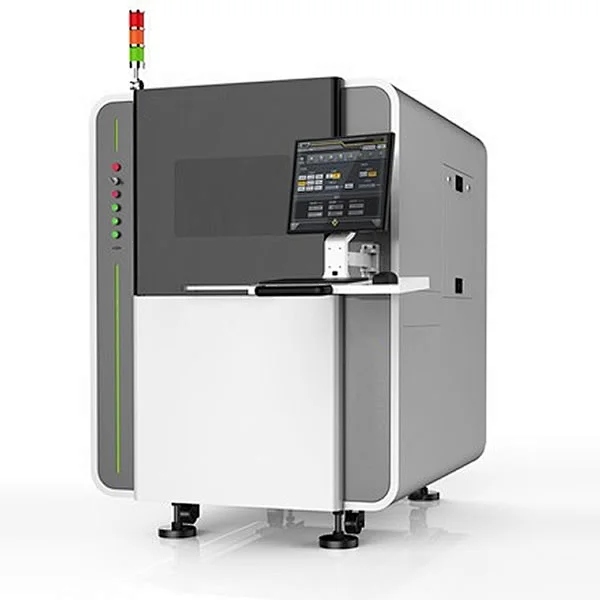

High Precision Laser Cutting System DZ-MS0404

High Precision Laser Cutting System DZ-MS0404

Imported ultraviolet.jpg

Imported ultraviolet laser has the advantages of small focus spot, fine marking, small thermal effect and more beautiful marking effect. At the same time, the series of lasers adopt intracavity frequency doubling technology to greatly improve the stability of the laser.

Imported digital.jpg

Imported digital high-speed scanning vibroscope, small volume, fast speed, good stability.

Linear motor.jpg

Linear motor + marble platform to ensure high speed running of machine, high precision cutting effect.

High Precision Laser Cutting System DZ-MS0404 specification :

Model

DZ-MS0404

Laser type

UV laser , 15 W

power supply

AC220±10 % ,50/60 HZ, 1P

Working area

400*400 mm

Focus spot diameter

<20μm

Machining Precision

±20μm

X /Y Working Platform

Linear motor

Base

High precision marble

working environment

Temperature :15~30°C; Relative humidity :5~85%, no condensate, no dust or ash Less dust

Cooling mode

Water cooling

supports graphic format

DXF etc

Dimensions (length * width * height)

About 1600*1200*1660 mm
