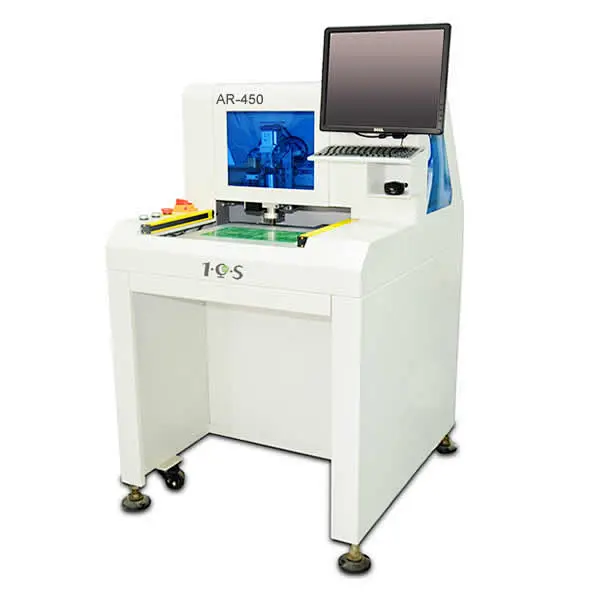

Single Station Automatic PCB Router AR-450
Single Station Automatic PCB Router AR-450

Single Station Automatic PCB Router AR-450

AR-450 PCB Router adopt high precision all servo driving system and high quality routing spindle which can ensure<0.05mm routing accuracy, x,y,z moving speed can reach 800mm/s , routing speed can reach 100m/s. and machine is equipped high resolution CCD which can automatically position fiducail mark and correct coordinate offset. windows operation system and self developed software make programming very easy,  built in vaccum cleaner can provide a clean work enviroment.

X,Y,Z axis adopt panasonic servo motor and it's driving system ,ball screw drive with rail & slider, make  movement smoothly and precisely.

● X,Y,Z axis adopt panasonic servo motor and it's driving system ,ball screw drive with rail & slider, make movement smoothly and precisely.

Equipped with High resolution CCD makes programming very easy.

● Equipped with High resolution CCD makes programming very easy. It has mark positioning function ,can automatically correct the coordinate offset.Also the CCD has the function of scanning bar code and QR code, which can scan the bar code and QR code information on the PCB board directly, and then call the finished program on the machine to cut the PCB board directly. Option MES system,Through the CCD on the router and MES system software for the router ,the machine can be docked with the factory's MES system.it will be convenient for program call and data download, production log upload.

High quality air cooling long service life routing spindle.

● High quality air cooling long service life routing spindle. The machine is equipped with an ion air gun. The ion wind blown from the bottom of the spindle can eliminate the static electricity generated during the cutting process.

∅0.8-∅3.0 mm milling cutter

● ∅0.8-∅3.0 mm milling cutter

The machine is equipped with the broken milling cutter detection function on the spindle. When the milling cutter is broken, the machine will stop, and the software interface will alarm.

● The machine is equipped with the broken milling cutter detection function on the spindle. When the milling cutter is broken, the machine will stop, and the software interface will alarm.

400W high-power spindle, which can cut Al board below 2.0mm thickness (machine needs to use custom-cut aluminum board milling cutter)

● 400W high-power spindle, which can cut Al board below 2.0mm thickness (machine needs to use custom-cut aluminum board milling cutter)

Built in 2.2KW vaccum cleaner provide a clean and low noise work enviroment.

● Built in 2.2KW vaccum cleaner provide a clean and low noise work enviroment.

Self developed softeware  makes programming and operating very easy.

● Self developed softeware makes programming and operating very easy. The software interface can set the Z-axis cutting depth and set different Z-axis cutting depths depending on the thickness of the PCB. Ensure that the Z-axis can cut the PCB at a fixed height (suitable for PCBs with components on the back of the cutting point, ensuring that the milling cutter does not damage the components on the back of the PCB).

Milling cut can be used  as 2 or 3 section, just set the parameter on sofeware, it has greatly prolonged milling cut' service life.

● Milling cut can be used as 2 or 3 section, just set the parameter on sofeware, it has greatly prolonged milling cut' service life.

AR-450 PCB Router Specification

Model

AR-450

Work station

1 work station

PCB Size(Max.)

310×480mm* 1pcs

PCB Thickness

0.4-2.0mm(hard board)

PCB Material

FR4,glass fiber,Al

Max component heigh

50mm

Cutting Speed(Max)

50mm/s

Moving speed

Max 500mm/s

Control method

line, circle, arc, U,L

Repeat Accuracy

±0.05(mm)

Routing Accuracy

±0.05(mm)

Drive system

X/Y/Z Three axis servo motor control

Vacuum cleaner

3PH AC 380V 50HZ/2.2 KW (Built in the router)

Routing Spindle

42000rpm/min,Air cooling

Milling Cutter

∅0.8,-∅3.0

Tool life control

Software program control

Programming method

Direct teach programming method

Machine Total Power Supply

3 phase AC 380V 50HZ/ 3.7 KW

Machine size

595(W)1220(D)1500(H)mm

Machine Weight

350 KG
