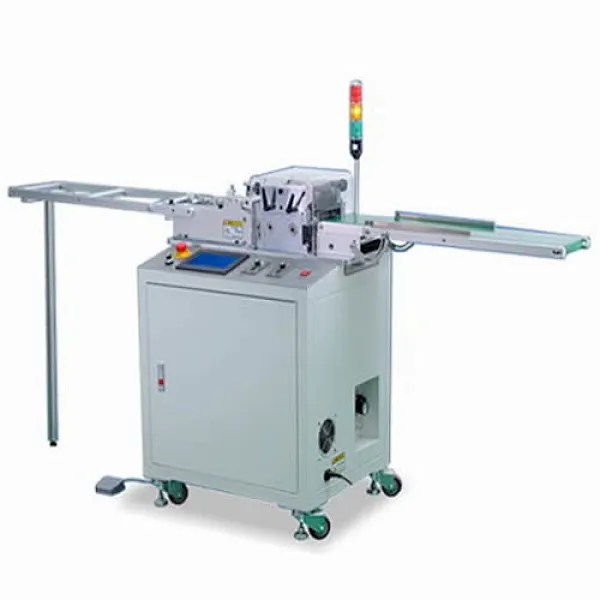

MDS-901 is equipped with 2 groups of cutters which can cut aluminum and FR4 LED board without burrs and deformation, it can separate 230mm width board simultaneouly, 280mm width board is also optional. it greatly improve the production efficiency and reduce labour costs.

MDS-901  is equipped with 2 groups of blades can make twice cutting process for one PCB

● MDS-901 is equipped with 2 groups of blades can make twice cutting process for one PCB, the distance between upper and lower cutter can be precisely adjusted, even easily separate 3.5mm aluminum board without any burrs and deformation, all cutters are made of SKD11 high speed steel with long service life.

The pitch of cutter can be changed by replacing spacers to meet different width of panel board requirement.

● The pitch of cutter can be changed by replacing spacers to meet different width of panel board requirement.

1200mm manual input platform is very suited for 1200mm length LED board.

● 1200mm manual input platform is very suited for 1200mm length LED board.

The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

● The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

Full english operation interface, easy to operate.

● Full english operation interface, easy to operate.

Inline Multiple Groups Of Blades PCB Separator MDS-901 Specification

Model

MDS-900

MDS-901 MDS-902

PCB loading mode

Automatic loading with PCB clamping device

Manual loading

Automatic loading by conveyor

Suitable PCB material

Aluminum , FR4

Aluminum , FR4

FR4

Blade groups number

2 groups

2 groups

1 groups

PCB Thickness range

0.8-3.5mm

0.8-3.5mm

0.8-3mm

Max component height

Bottom 0mm , upper 15mm

Bottom 0mm , upper 15mm

Bottom15mm , upper 15mm

Min panel width

8 mm

8 mm

8 mm

Max PCB width

standard 230mm , optional 280mm

standard 230mm , optional 280mm

170MM

PCB length

Min 700mm , max length with optional inlet and outlet conveyor

standard 200mm-1200mm ,optional 200mm-1500mm

Max 400mm

Inlet platform length

with Optional 1000mm input conveyor ,1500mm input conveyor

1200mm

420mm

Outlet conveyor length

standard 1000mm, optional 1500mm

standard 1000mm, optional 1500mm

690mm

Conveying direction

Only left to right

Only left to right

Only left to right

Conveying height

900±20mm

900±20mm

900±20mm

Blade material

SKD11

SKD11

High speed steel SKD11

Blade lifespan

approx 800,000 times (1.0m long , 3mm thick aluminum board)

approx 800,000 times (1.0m long , 3mm thick aluminum board)

Approx 800,000 times

Voltage

220V/50Hz

220V/50Hz

1PH, 220V/50HZ

Machine Dimension

L1950*W690*H1120mm (without input conveyor )

L2510*W690*H1120mm

L1250*W610*H1050mm

Machine weight

158kg

158kg

110kg

Power

400W

400W

200W
