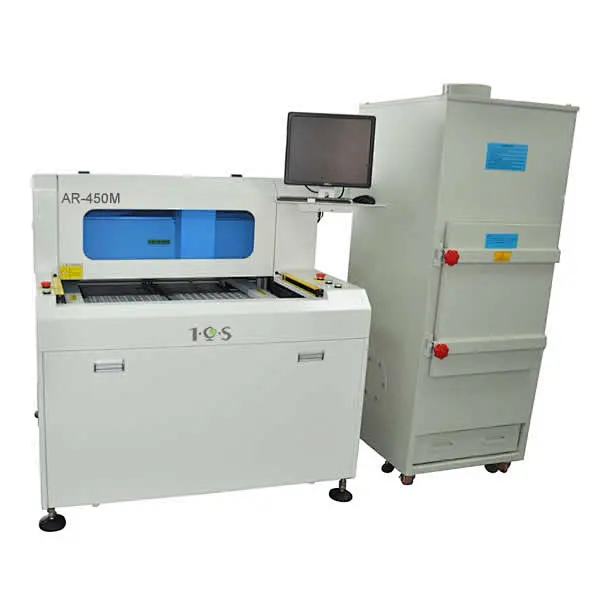

Double Station Automatic PCB Router AR-450M
Double Station Automatic PCB Router AR-450M

Double Station Automatic PCB Router AR-450M

AR-450M PCB Saparator adopt servo driving system and high quality routing spindle which can ensure<0.05mm routing accuracy , x,y1,y2,z moving speed can reach 500mm/s, routing speed can reach 50mm/s. and machine is equipped high resolution CCD which can automatically position fiducail mark and correct coordinate offset. windows operation system and self developed software make programming very easy, 2 work stations design greatly improve production efficiency. External silence vaccum cleaner can provide a clean work enviroment.

X,Y1,Y2,Z axis adopt panasonic servo motor and it's driving system, ball screw drive with rail & slider, make movement smoothly and precisely.

● X,Y1,Y2,Z axis adopt panasonic servo motor and it's driving system, ball screw drive with rail & slider, make movement smoothly and precisely.

Equipped with High resolution CCD makes programming very easy.

● Equipped with High resolution CCD makes programming very easy. It has mark positioning function, can automatically correct the coordinate offset.Also the CCD has the function of scanning bar code and QR code, which can scan the bar code and QR code information on the PCB board directly, and then call the finished program on the machine to cut the PCB board directly. Option MES system,Through the CCD on the router and MES system software for the router ,the machine can be docked with the factory's MES system.it will be convenient for program call and data download, production log upload.

High quality, air cooling long service life routing spindle.

● High quality, air cooling long service life routing spindle. The machine is equipped with an ion air gun. The ion wind blown from the bottom of the spindle can eliminate the static electricity generated during the cutting process.

∅0.8-∅3.0 mm milling cutter

● ∅0.8-∅3.0 mm milling cutter

Double working table design, positioning more accurately than cyclinder driving mechanism, improve production efficiency.

● Double working table design, positioning more accurately than cyclinder driving mechanism, improve production efficiency.

The machine is equipped with the broken milling cutter detection function on the spindle.

● The machine is equipped with the broken milling cutter detection function on the spindle. When the milling cutter is broken, the machine will stop, and the software interface will alarm.

400W high-power spindle, which can cut Al board below 2.0mm thickness (machine needs to use custom-cut aluminum board milling cutter)

● 400W high-power spindle, which can cut Al board below 2.0mm thickness (machine needs to use custom-cut aluminum board milling cutter)

self developed softeware makes programming and operating very easy.

● self developed softeware makes programming and operating very easy. The software interface can set the Z-axis cutting depth and set different Z-axis cutting depths depending on the thickness of the PCB. Ensure that the Z-axis can cut the PCB at a fixed height (suitable for PCBs with components on the back of the cutting point, ensuring that the milling cutter does not damage the components on the back of the PCB).

Milling cut can be used  as 2 or 3 section, just set the parameter on sofeware, it has greatly prolonged milling cut' service life.

● Milling cut can be used as 2 or 3 section, just set the parameter on sofeware, it has greatly prolonged milling cut' service life.

Double station Automatic PCB Router AR-450M Specification

Model

AR-450M

Work station

2 work station

PCB Size(Max.)

420×320mm* 2pcs

PCB Thickness

0.4-2.0mm(hard board)

PCB Material

FR4,glass fiber,Al

Max component heigh

50mm

Cutting Speed(Max)

50mm/s

Moving speed

Max 500mm/s

Control method

line, circle, arc, U,L

Repeat Accuracy

±0.05(mm)

Routing Accuracy

±0.05(mm)

Drive system

X/Y1/Y2/Z Four axis servo motor control

Vacuum cleaner Power

3PH AC 380V 50HZ/2.2 KW (External on the Router)

Routing Spindle

42000rpm/min , Air cooling

Milling Cutter

∅0.8,-∅3.0

Tool life control

Software program control

Programming method

Direct teach programming method

Machine Total Power Supply

3 phase AC 380V 50HZ/ 4.5 KW

Machine size

L1200mm×W1150mm×H1317mm

Vacuum cleaner size

L805mm*W920mm*H1950mm

Machine Weight

600 KG

Vaccum cleaner weight

300 KG
