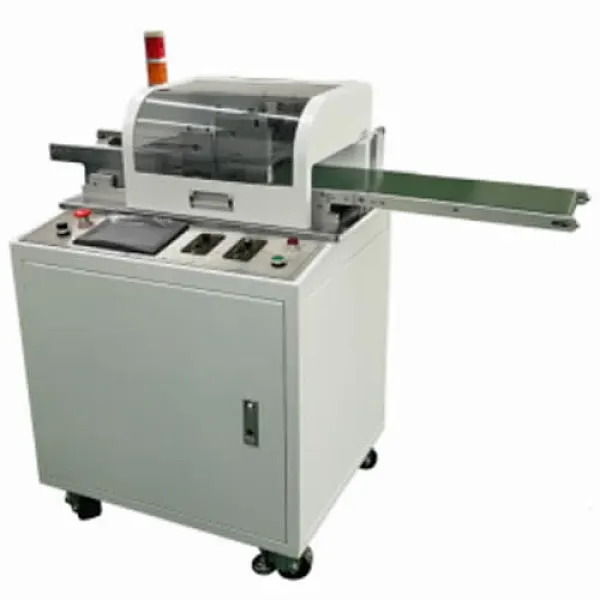

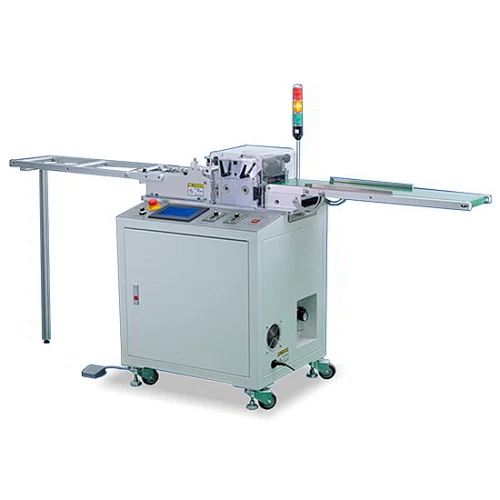

MDS-902 is equipped with 1 set of multiple blades which can cut FR4 PCB without burrs and deformation, it can separate max 170mm width board simultaneouly.MDS-902 is equipped with automatic loading conveyor which can be easily connect with automatic production line.

MDS-902  is equipped with 1 set of multiple blades which can cut FR4 PCB

● MDS-902 is equipped with 1 set of multiple blades which can cut FR4 PCB without burrs and deformation , the distance between upper and lower cutter can be precisely adjusted, it can separate max L400*W170mm FR4 panel board with max upper 15mm and bottom 15mm at one time, all cutters are made of SKD11 high speed steel with long service life.

The pitch of cutter can be changed by replacing spacers to meet different width of panel board requirement.

● The pitch of cutter can be changed by replacing spacers to meet different width of panel board requirement.

MDS-902 is equipped with automatic PCB

● MDS-902 is equipped with automatic PCB loading conveyor which can be easily connected with automatic production line., SMEMA connector is optional.

The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

● The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

Full english operation interface, easy to operate.

● Full english operation interface , easy to operate.

Inline Multiple Groups Of Blades PCB Separator MDS-902 Specification

Model

MDS-900

MDS-901 MDS-902

PCB loading mode

Automatic loading with PCB clamping device

Manual loading

Automatic loading by conveyor

Suitable PCB material

Aluminum , FR4

Aluminum , FR4

FR4

Blade groups number

2 groups

2 groups

1 groups

PCB Thickness range

0.8-3.5mm

0.8-3.5mm

0.8-3mm

Max component height

Bottom 0mm , upper 15mm

Bottom 0mm , upper 15mm

Bottom15mm , upper 15mm

Min panel width

8 mm

8 mm

8 mm

Max PCB width

standard 230mm , optional 280mm

standard 230mm , optional 280mm

170MM

PCB length

Min 700mm , max length with optional inlet and outlet conveyor

standard 200mm-1200mm ,optional 200mm-1500mm

Max 400mm

Inlet platform length

with Optional 1000mm input conveyor ,1500mm input conveyor

1200mm

420mm

Outlet conveyor length

standard 1000mm, optional 1500mm

standard 1000mm, optional 1500mm

690mm

Conveying direction

Only left to right

Only left to right

Only left to right

Conveying height

900±20mm

900±20mm

900±20mm

Blade material

SKD11

SKD11

High speed steel SKD11

Blade lifespan

approx 800,000 times (1.0m long , 3mm thick aluminum board)

approx 800,000 times (1.0m long , 3mm thick aluminum board)

Approx 800,000 times

Voltage

220V/50Hz

220V/50Hz

1PH, 220V/50HZ

Machine Dimension

L1950*W690*H1120mm (without input conveyor )

L2510*W690*H1120mm

L1250*W610*H1050mm

Machine weight

158kg

158kg

110kg

Power

400W

400W

200W
