● MDS-900 is equipped with 2 groups of blades can make twice cutting process for one PCB, the distance between upper and lower cutter can be precisely adjusted, even easily separate 3.5mm aluminum board without any burrs and deformation, all cutters are made of SKD11 high speed steel with long service life. |
|
|
● The pitch of cutter can be changed by replacing spacers to meet different width of panel board requirement. |
|
|
● MDS-900 is equipped with automatic PCB clamping and loading system which can be easily connected with automatic production line, SMEMA connector is optional. |
|
|
● The machine adopts touch screen and PLC control system which can monitor production information, easy to operate. |
|
|
● Full english operation interface, easy to operate. |

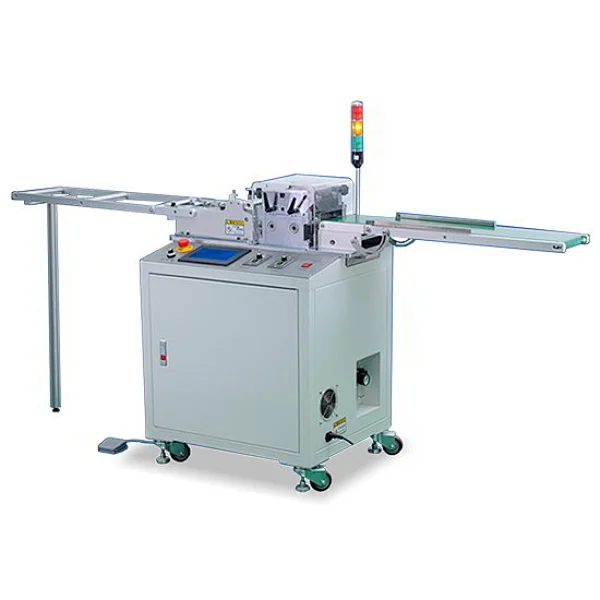

Inline Multiple Groups Of Blades PCB Separator MDS-900
MDS-900 is equipped with 2 groups of cutters which can cut aluminum and FR4 LED board without burrs and deformation, it can separate 230mm width board simultaneouly, 280mm width board is also optional .MDS-900 is equipped with automatic PCB clamping and loading system which can be easily connect with automatic production line.
|
Inline Multiple Groups Of Blades PCB Separator MDS-900 Specification |
|||
|
Model |
MDS-900 |
MDS-901 | MDS-902 |
|
PCB loading mode |
Automatic loading with PCB clamping device |
Manual loading |
Automatic loading by conveyor |
|
Suitable PCB material |
Aluminum , FR4 |
Aluminum , FR4 |
FR4 |
|
Blade groups number |
2 groups |
2 groups |
1 groups |
|
PCB Thickness range |
0.8-3.5mm |
0.8-3.5mm |
0.8-3mm |
|
Max component height |
Bottom 0mm , upper 15mm |
Bottom 0mm , upper 15mm |
Bottom15mm , upper 15mm |
|
Min panel width |
8 mm |
8 mm |
8 mm |
|
Max PCB width |
standard 230mm , optional 280mm |
standard 230mm , optional 280mm |
170MM |
|
PCB length |
Min 700mm , max length with optional inlet and outlet conveyor |
standard 200mm-1200mm ,optional 200mm-1500mm |
Max 400mm |
|
Inlet platform length |
with Optional 1000mm input conveyor ,1500mm input conveyor |
1200mm |
420mm |
|
Outlet conveyor length |
standard 1000mm, optional 1500mm |
standard 1000mm, optional 1500mm |
690mm |
|
Conveying direction |
Only left to right |
Only left to right |
Only left to right |
|
Conveying height |
900±20mm |
900±20mm |
900±20mm |
|
Blade material |
SKD11 |
SKD11 |
High speed steel SKD11 |
|
Blade lifespan |
approx 800,000 times (1.0m long , 3mm thick aluminum board) |
approx 800,000 times (1.0m long , 3mm thick aluminum board) |
Approx 800,000 times |
|
Voltage |
220V/50Hz |
220V/50Hz |
1PH, 220V/50HZ |
|
Machine Dimension |
L1950*W690*H1120mm (without input conveyor ) |
L2510*W690*H1120mm |
L1250*W610*H1050mm |
|
Machine weight |
158kg |
158kg |
110kg |
|
Power |
400W |
400W |
200W |
