Bench-top Automatic PCB Router AR-300/AR-400
Bench-top Automatic PCB Router AR-300/AR-400

Bench-top Automatic PCB Router AR-300/AR-400

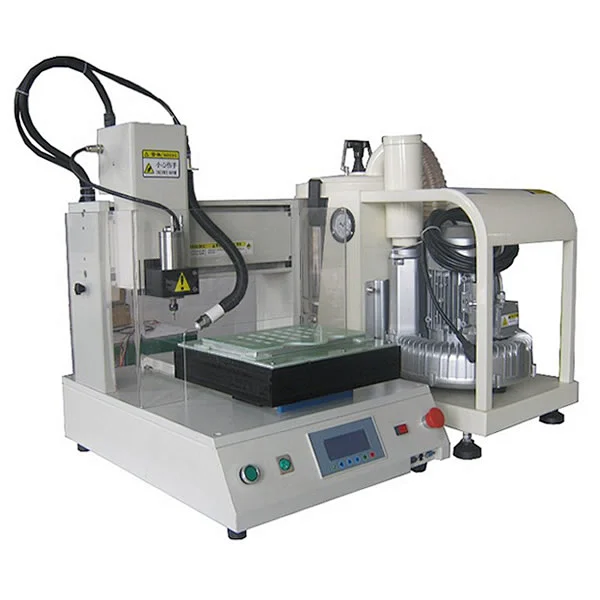

Bench-top Automatic PCB Router adopt step motor and driving system and high quality routing spindle which can ensure<0.05mm routing accuracy, x,y,z moving speed can reach 500mm/s, routing speed can reach 100m/s.  Friendly interface make programming very easy, Equipped with vaccum cleaner which can provide a clean work enviroment.

Bench-top Automatic  Router adopt x,y,z step motor and driving system ,ensure machine run smooth and precisely.routing accuracy less than 0.05mm.

● Bench-top Automatic Router adopt x,y,z step motor and driving system, ensure machine run smooth and precisely. routing accuracy less than 0.05mm.

X,Y,Z axis step driving system

● X,Y,Z axis step driving system

Optional CCD and display make programming easier.

● Optional CCD and display make programming easier.

Optional CCD+Industry PC for fiducial mark recognition and easily programming

● Optional CCD+Industry PC for fiducial mark recognition and easily programming

Optional fixture according to customer's requirement.

● Optional fixture according to customer's requirement.

Euipped with quality air cooling long service life routing sprindle made in Taiwan.

● Euipped with quality air cooling long service life routing sprindle made in Taiwan.

Equipped With vaccum cleaner provides a clean and low noisy work enviroment

● Equipped With vaccum cleaner provides a clean and low noisy work enviroment

Optional ion air gun,ion wind is generated during the cutting process of the machine, which can eliminate static electricity generated on the PCB during cutting.

● Optional ion air gun,ion wind is generated during the cutting process of the machine, which can eliminate static electricity generated on the PCB during cutting.

Optional fixture according to customer's requirement.

● Optional fixture according to customer's requirement.

Bench-top Automatic PCB Router specification

Model

AR-300

AR-400

Machine size(mm)

L700mm*W580mm*H890mm

L800mm*W680mm*H890mm

Power Supply

AC 220V 50 HZ

AC 220V 50 HZ

PCB Thickness

0.4-3.5mm(Hard board)

0.4-3.5mm(Hard board)

Weight

90 KG

110 KG

power

300W

300W

Vacuum Cleaner Power

1500W

1500W

Work table size(mm)

300mm*300mm

400mm*400mm

Drive system

X/Y/Z axis step motor control

X/Y/Z axis step motor control

Routing Spindle

50000rpm/min Air cooling

50000rpm/min Air cooling

Routing Speed

1-100mm/sec

1-100mm/sec

Driving System Repeatability

±0.05mm

±0.05mm

Moving speed

Max 500mm/s

Max 500mm/s

Milling Cutter

∅0.8-∅3.0 mm

∅0.8-∅3.0 mm
