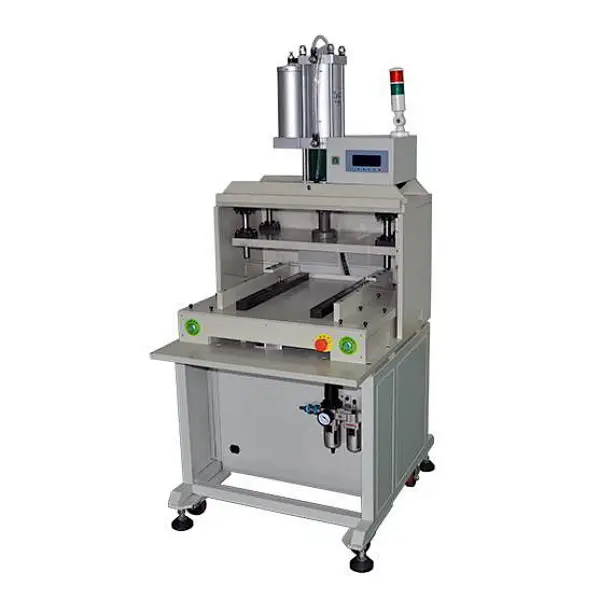

Punch depanelling machine PD-3T/10T

FPC Punching PCB Depaneller PD-3T separates FPCs or PCBS with high efficiency Minimizing stress to boards,components or solder joints,it can use mutiple dies ,dies replacement and operation is very esay,it is suited for high-volume production.

Punch depanelling machine PD-3T/10T Features

Mutiple dies can be easily changed.

Compact ,solid structure with easy and safe operation.

Extremely high efficiency to cut semi-finished PCB and FPC.

Customized die is available according to provided PCB gerber file.

Cutter's lifetime of die is average 300,000 times and cutter is changeable.

Lower die moves in and out automatically for easy discharge of product which may drop into the drawer.

Minimize the internal stress generated during punching,avoids microcracking of solder joints and delamination of PCBs.

Punch Depaneling router WZ-P3T/10T/10TL Specification

Model

WZ-P10TL WZ-P10T WZ-P3T

Punch power

10T

10T

3T

Punch Max.height

108mm

108mm

120mm

Working area

460X330mm

330X220mmpressure

330X220mm

Force transmission

Air-liquid super charged

Working mode

Manual feeding,Lower die moves in and out automatically

Starting mode

Manual control

Punch speed

20s/cycle

Product Size

830x830x1230mm (Benchtop)

720x700x1230mm (Benchtop)

820x730x1760mm(Vertical type)

Weight

650kgs

580kgs

460kgs
