Practical, dependable motorized MDS-501/502 PCB Separator providing reliable, burr-free separation with no stress to the boards or nearby components.

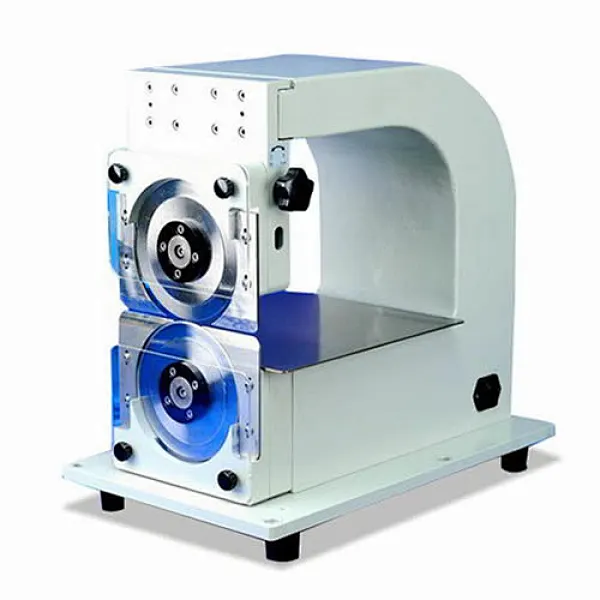

MDS-501/502 Dual Circular Blade Motorized PCB Separator Feature
|
● Dual circular blades ensure clean, the burrs are very few of separating and little stress to boards . |
|
● Minimized shearing stress avoids microcracking of solder joints and delamination of PCBs. |
|
● Suitable for FR4 |
|
● Easy set-up , low maintenance. |
|
MDS-501/502 Specification: |
||
|
Model |
MDS-501( with no platform) |
MDS-502( with 1.2M platform) |
|
PCB Thickness |
0.8 mm - 2.0 mm |
0.8 mm to 2.0 mm |
|
Suitable material |
PCB |
FR4 |
|
Maximum Depaneling Length |
250mm |
500mm |
|
Single board width |
Minimum 20mm |
Minimum 8mm |
|
Depaneling Mode |
Motorized | Motorized |
|
Top component height |
Max 15mm |
Max 15mm |
|
Bottom component height |
Max 15mm |
0mm |
|
Minimum component distance from v-groove |
2.6mm |
2.6mm |
|
Separating Speed |
adjustable |
adjustable |
|
Power Supply |
220V,50HZ |
220V,50HZ |
|
Machine Size |
L380xW290xH380mm |
L380xW290xH380mm |
|
Platform Size |
None |
L1200xW360xH190mm |
|
Power |
60W |
60W |
|
Machine Weight |
29kg |
29kg |
|
Platform Weight |
0 |
6 kg |
